Appli Parts Potential Relay 066 Coil Voltage 395V Min Pick up 215V Max Pick up 225V Max Drop Out 120V 50/60 Hz Universal replacement for HVAC and Refrigeration units APPR-066

Appli Parts Potential Relay 066 Coil Voltage 395V Min Pick up 215V Max Pick up 225V Max Drop Out 120V 50/60 Hz Universal replacement for HVAC and Refrigeration units APPR-066
Use: Potential Relays are used to engage and disengage the Start Capacitor once the unit is started. Failing to disconnect the Start capacitor will cause electrical damage

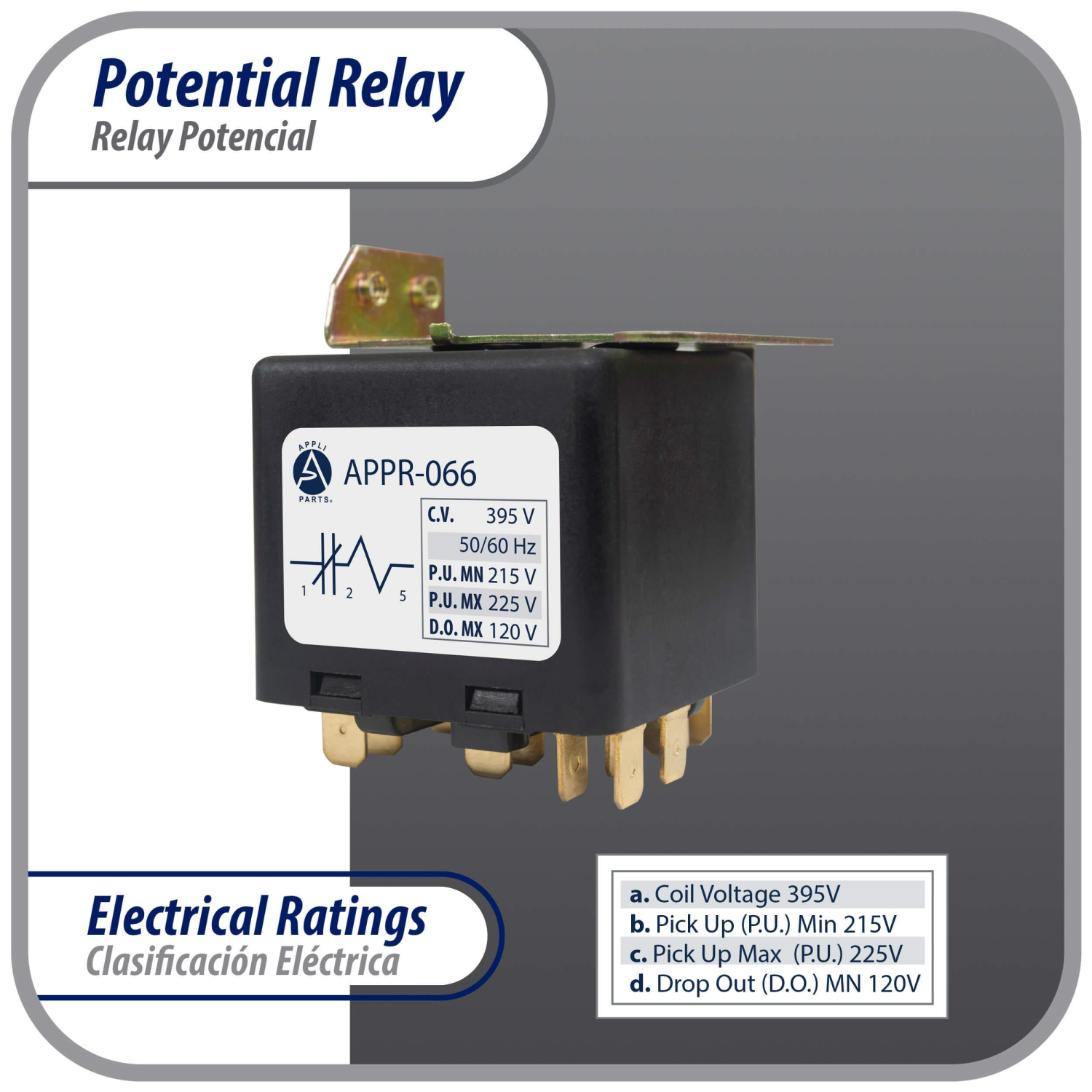

Specs: Coil Voltage is 395V. Minimum Pick Up 215V. Maximum Pick Up 225V. Maximum Drop Out 120V. Can be used in 50/60 Hz applications

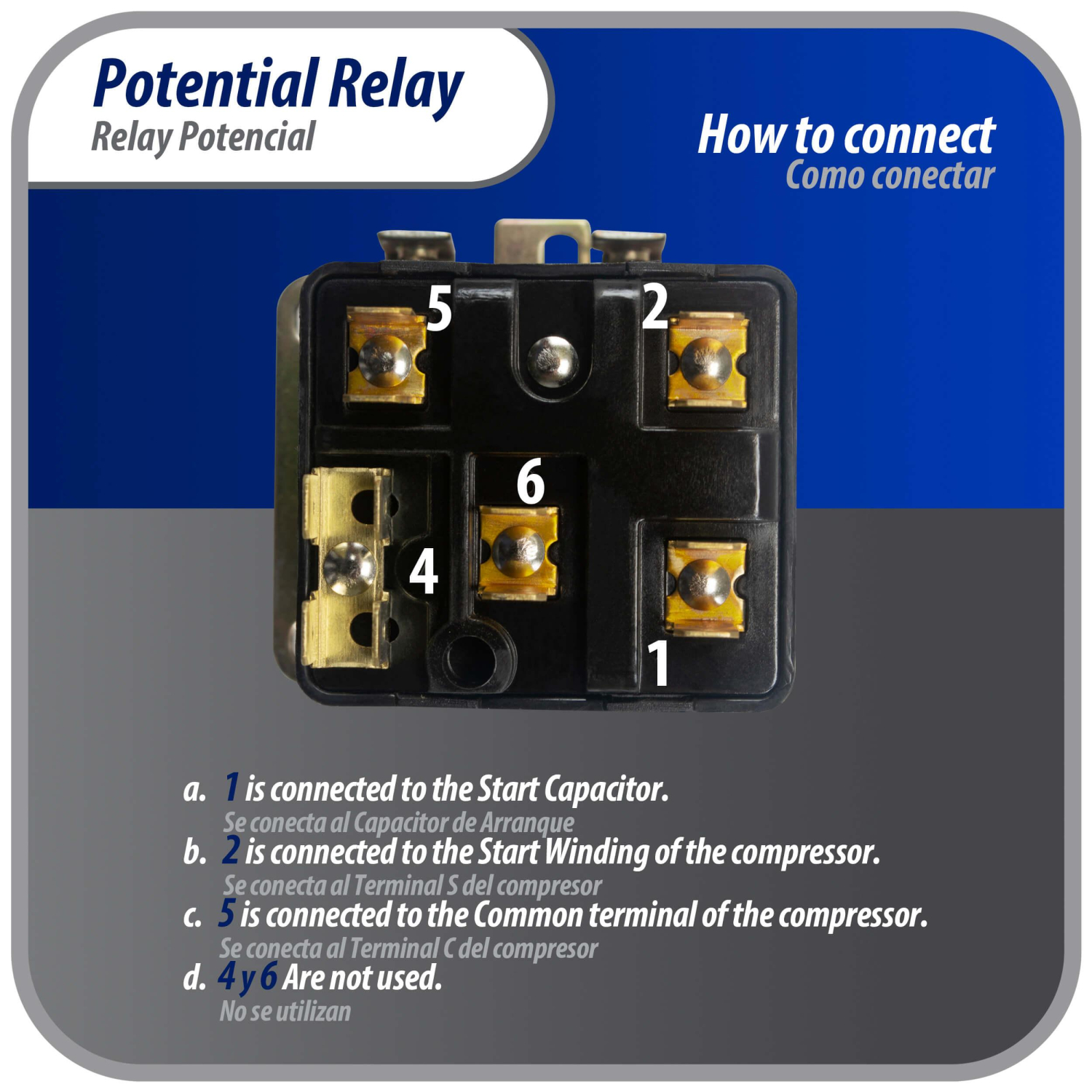

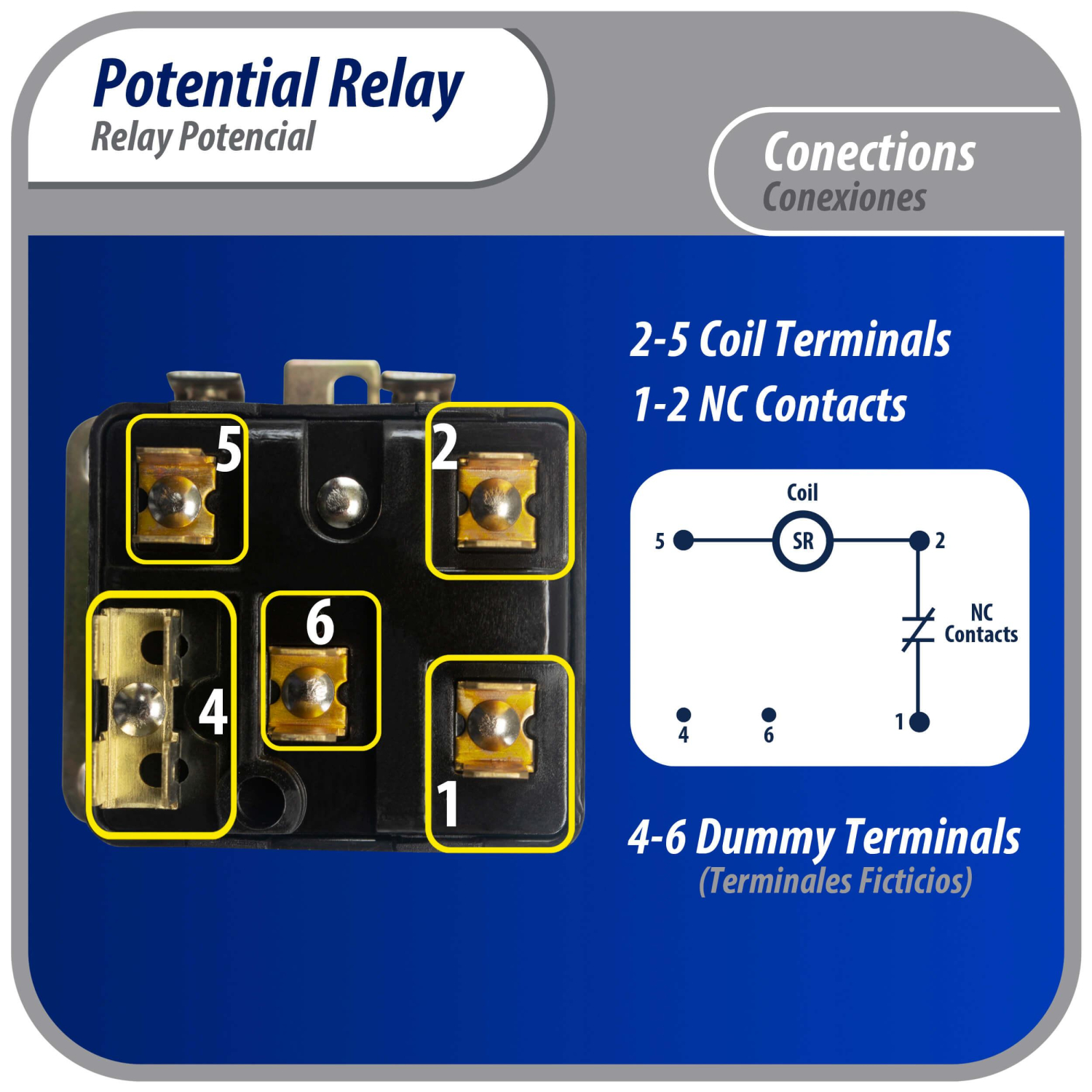

Connections: There are 6 sets of 1/4in connectors. 1-2 Normally Closed Contacts. 2-5 Coil Terminals. 4-6 Dummy Terminals

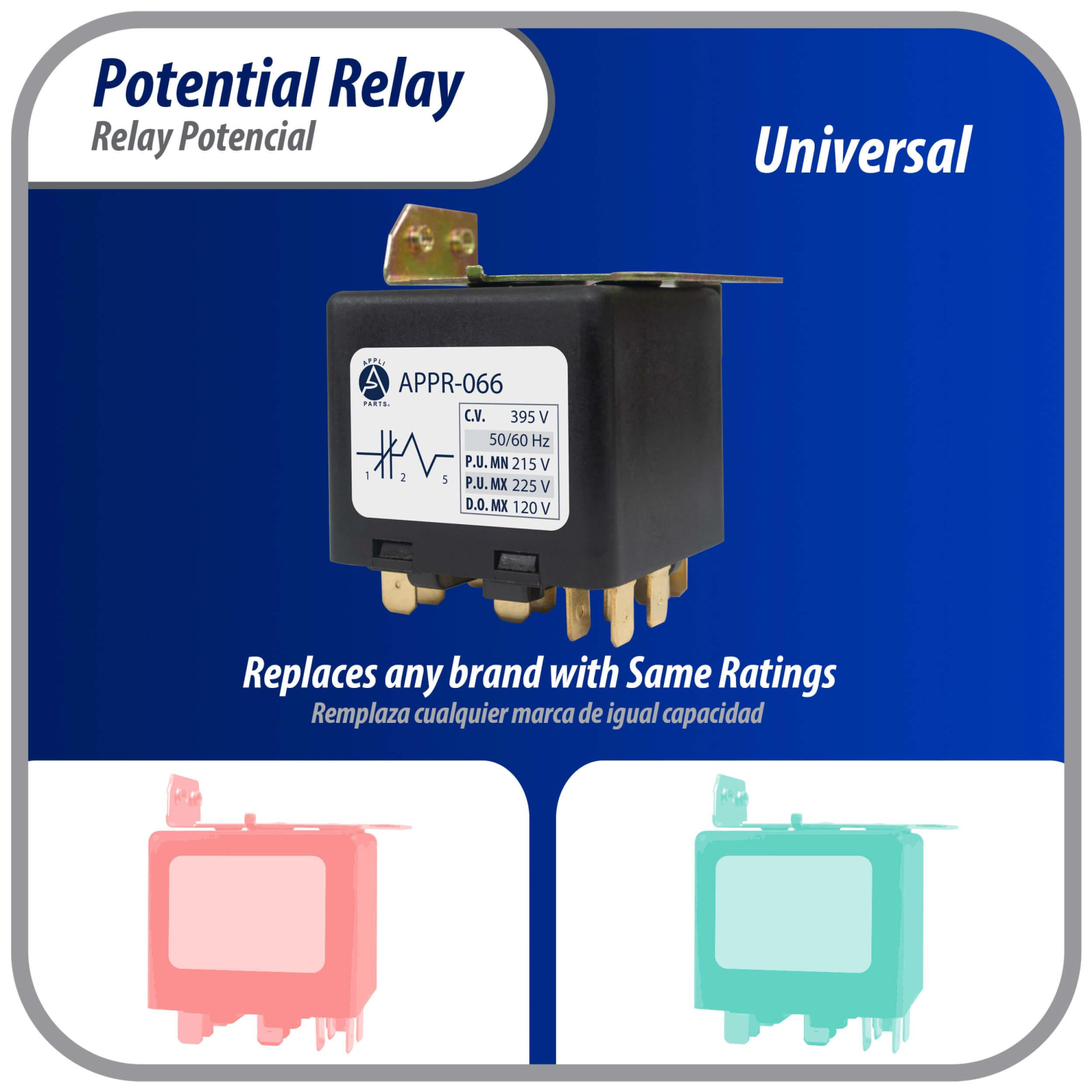

Universal: Replaces many part numbers and brands with the same electrical specs.
Replaces: 9066, 19005, 19166, 90-13, 90-27, 90-66

Weight : 0.4 LBR
Volume : 0.009 FTQ
Model : APPR-066
UPC-EAN : 814245027711

Universal replacement Potential Relay

This part is a replacement for original part numbers and brands equal but not limited to:

8201-52, 8201-53, 8201-54, 8201-62

A45042-1, A45264-1, B47174-1, B47176-1, B51109-2

1084529

275-07, 275-09, 275-14, 304-13599-01, 304-13599-02, 304-13599-04, 325-S-3699, 325-S-3928

1456-675, 1456-903, 1456-904, 1456-905, 1456-920, 1456-932

58340-D2, 58340-D3, 59591-D2

HN61HB499, HN61HZ052, HN61HZ060, HN61KB021, HN61KB075

1742933, 1747032

2009413

5600327

6103-316, 6163-315, 6184-165, 6186-182, 6208-365, 6222-160, 6942-315

040-0006-06, 040-0014-04, UW10-540

823-060

DNP-02-0376, DNP-02-0377, DNP-02-0428A

3934284, 4926551, 4927686, 4934284, 4936360

E10825

16-4-010B-7, 16-4-012B-3, 16-4-012B-4, 16-4-012B-6, 16-4-012B-7, 16-4-013B-3, 16-4-013B-4, 16-4-013B-14, 16-4-015B-1, 16-4-015B-4, 16-4-029B-2, 16-4-029B-7

600-752-00, 600-752-04, 600-752-05, 600-752-13, 600-752-17, 1281221, 1281222, 1281241, 1281242, 1281644

PR066

3ARR3-3AT, 3ARR3-3U, 3ARR3-3V, 3ARR3-6U, 3ARR3-6V, 3ARR3-6W, 3ARR3-A6U3, 3ARR3-A6V2, 3ARR3-A6V3, 3ARR3-A6V5, 3ARR3-A6W3, 3ARR3-A10V2, 3ARR3-B3U3, 3ARR3-B3V3, 3ARR3-B3V4, 3ARR3-B5V2, 3ARR3-B5V3, 3ARR3-B6AW3, 3ARR3-B6U3, 3ARR3-B6U5, 3ARR3-B6V2, 3ARR3-B6V3, 3ARR3-B6V5, 3ARR3-B6W3, 3ARR3-B10V5, 3ARR3-CT3U5, 3ARR3-CT6V3, 3ARR3-CT6V6, 3ARR3-CT10P5, 3ARR3-CT25S3, 3ARR3-CT25S6, 3ARR3-CU6U2, 3ARR3-CV6V3, 3ARR3-D6U2, 3ARR3-D6U3, 3ARR3-D6V2, 3ARR3-D6V3, 3ARR3-D10V3, 3ARR3-EA3V4, 3ARR3-EA3V5, 3ARR3-FJ6EH2, 3ARR3-G3V2, 3ARR3-G10V3, 3ARR3-H6U2, 3ARR3-H6V2, 3ARR3-H6W2, 3ARR3-H6W3, 3ARR3-J3U2, 3ARR3-J3V2, 3ARR3-J3V3, 3ARR3-J3V4, 3ARR3-J6U2, 3ARR3-J6U6, 3ARR3-K3U3, 3ARR3-K3U4, 3ARR3-K3V3, 3ARR3-K3V4, 3ARR3-K6U2, 3ARR3-K6U3, 3ARR3-K6V2, 3ARR3-K6V3, 3ARR3-K6V5, 3ARR3-K10V3, 3ARR3-K10V5, 3ARR3-N3V3, 3ARR3-R3V4, 3ARR3-T3AT4, 3ARR3-T6U5, 3ARR3-T6V3, 3ARR3-U6U2, 3ARR3-U6V2, 3ARR3-Z3U4, 113525, W83137, W91666

23-1308-34

A91B80, B91B80

46,47,66

46-00-513, 46-00-525, 46-00-527

B119009-5, B119009-17

C-11872-2

160012

16-4-130-2, 20-4115, 20-4196

4-9-57A5, 22-9632, 22-9634

M-33000-35

5192-93, 5192-104, 5192-157, 5192-265-4, 55192-263

E10825

H80-2117

90-13, 90-27, 90-66, 128--2--5-V, 128--2--6-V, 128--6--5-V, 128--6--6-U, 128--6--6-V, 128--6--6-W, 91255-936, 91255-1250, 91255-1251, 91255-1252, 91255-1253, 91255-1254, 91255-1255, 91255-1344

71-35, 71-39, 71-47

46-00-513, 46-00-525

42-18282-18, 42-18282-24, 42-18528-09, 42-18528-15

0410-111, 1225-03

U18-325

6A-296101

OAS17046, OAS23020

820ARR3A03, 820ARR3A84, 820ARR3A86, 82212, 82214, 82219, 82221, 82223, 82224, 82228, 82261, 82269, 82273, 82296, 82298, 82548, 82556, 82556-3, 82557, 82557-3, 82558, 82558-3, 82569, 82571, 82597, 82759, 82780, 82781, 82801, 82803, 82804, 82817, 82819, 82826, P82960, P82966

10121110/283, 13150011

WPR-66

A572-2, A812-10, A1348-2

W248B172-6, 350A201-13, C-295754, Y16552, Y41179, Y41183, Y41184

42793, 47260, 479370, 563478, 792110, 797914, 861673

20-4196, 24-10537, 24-10538, 24-10589, 24-10912, 24-11020, 24-11607, 24-11609, 24-11614, 24-11617, 24-11849, 24-12663, 24-14298

PR9066
