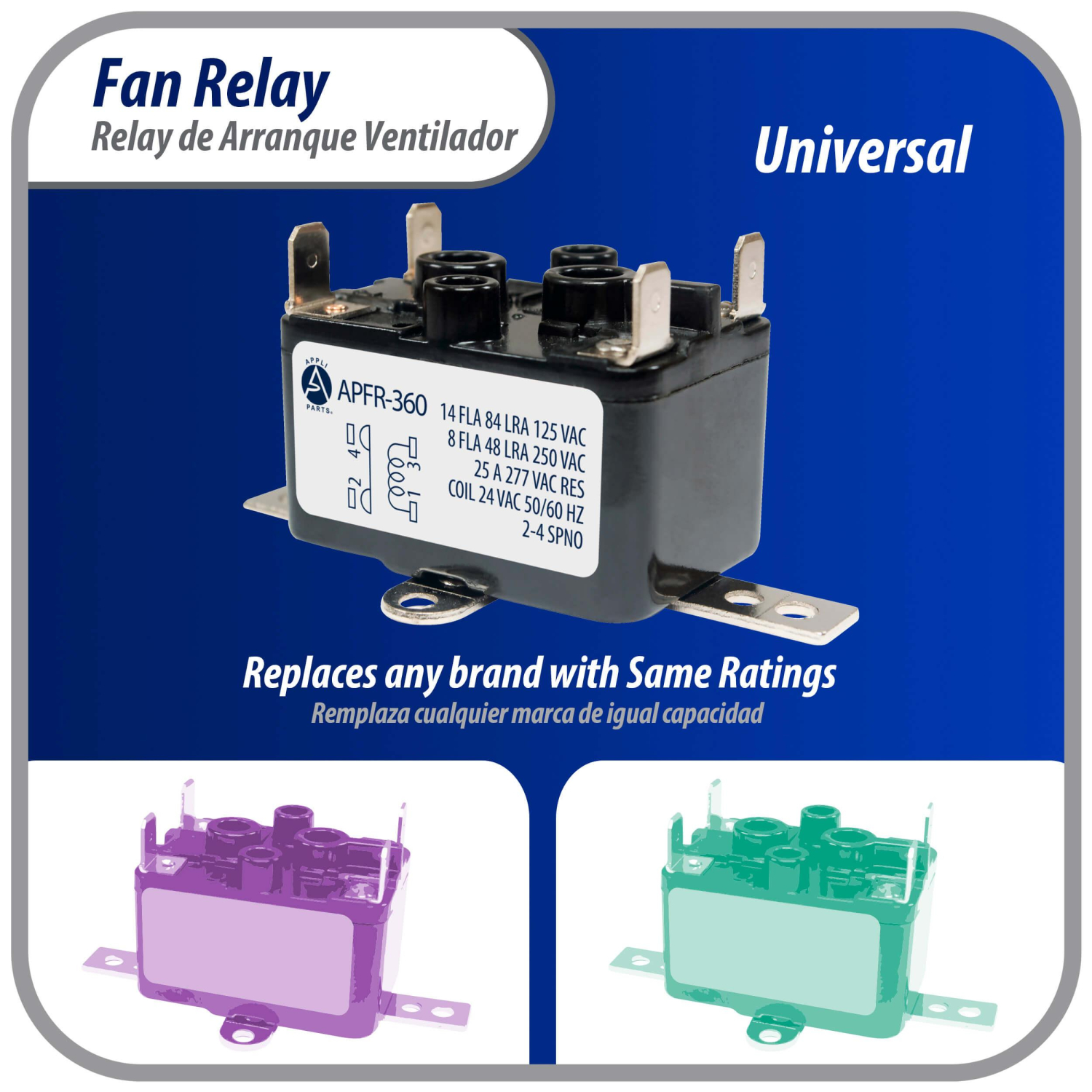

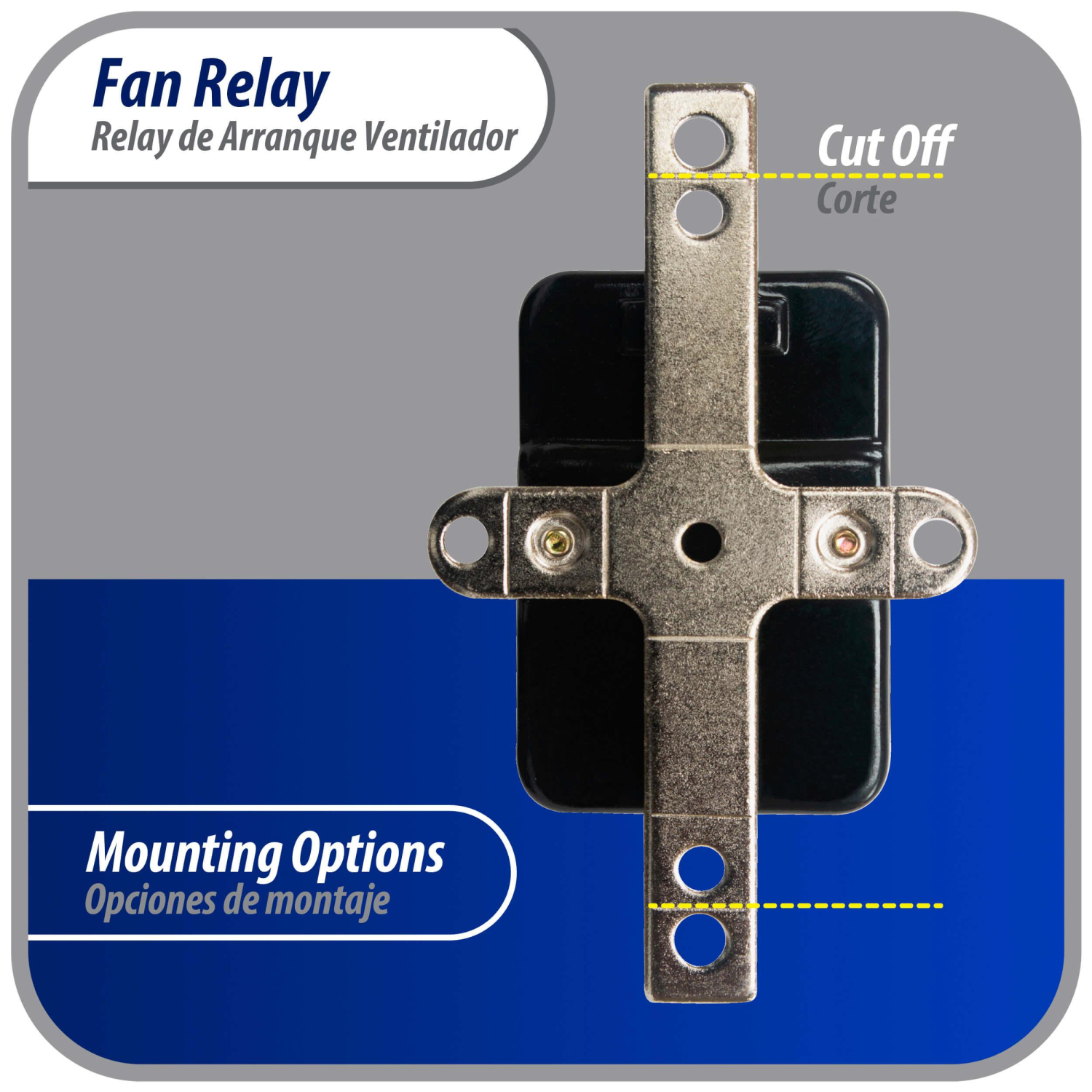

90-360 Appli Parts Heavy Duty Switching Fan Relay 24 VAC Coil SPST Normally Open AC and heating Furnace blower relay Universal fit multi position bracket APFR-360
$13.58($1.00 EA)
90-360 Appli Parts Heavy Duty Switching Fan Relay 24 VAC Coil SPST Normally Open AC and heating Furnace blower relay Universal fit multi position bracket APFR-360

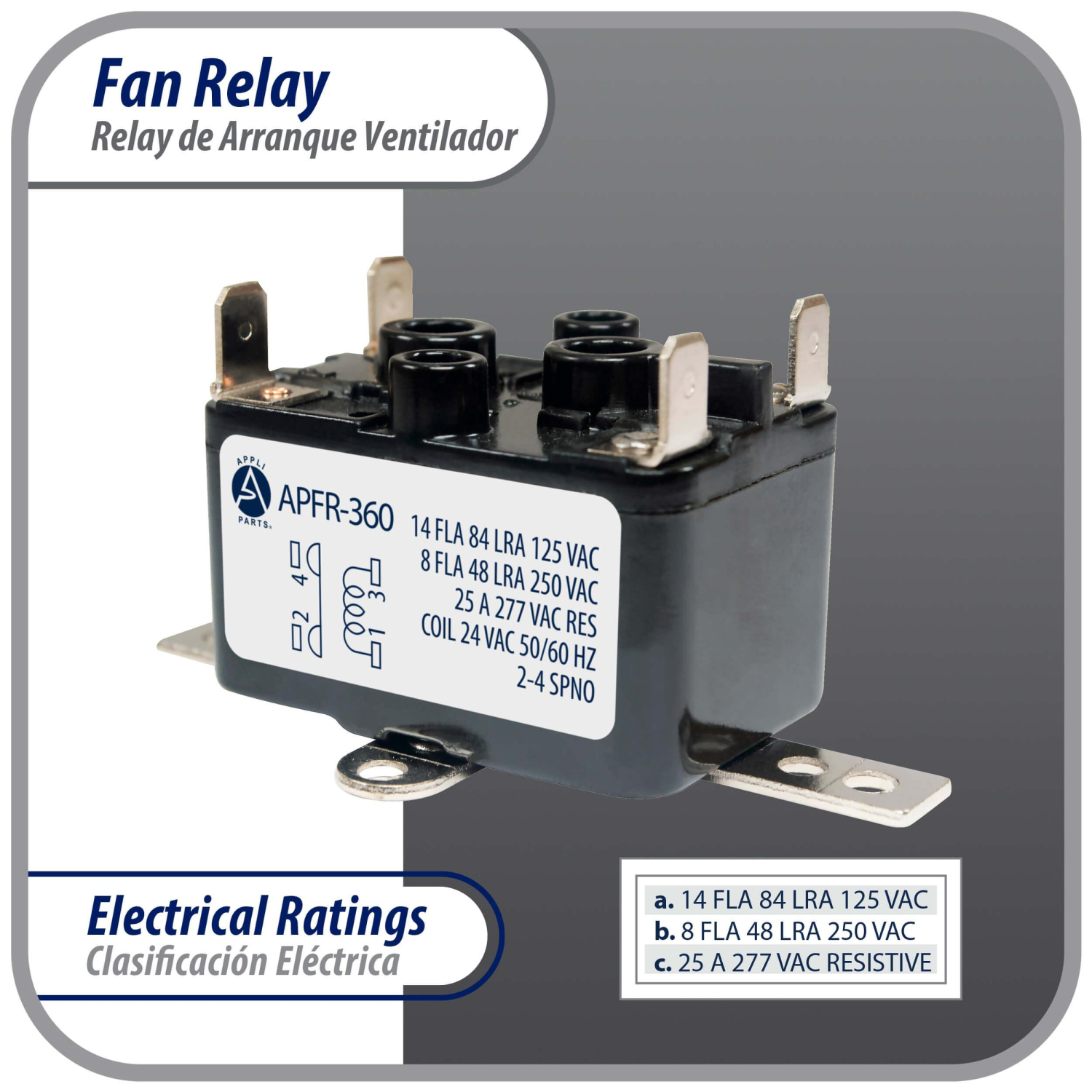

90-360 Appli Parts Heavy Duty Switching Fan Relay 24 VAC Coil SPST Normally Open AC and heating Furnace blower relay Universal fit multi position bracket APFR-360 Use: Designed for use in Heating, Air Conditioning, Refrigeration and Ventilation Applications. Universal design for other application that meet electrical specs Specs: 24V AC Coil, Terminals 2-4 Power Normally Opened, 1-3 Coil for input Signal, 14 FLA 84 LRA 125 VAC, 8 FLA 48 LRA 250 VAC, 25A 277 VAC Resistive, 50/60 Hz Universal: This Switching relay also known as fan relay hvac will work with any unit where the electrical requirements are met by the products specifications Quality: Our products are manufactured and tested following International Standard specifications for a direct replacement option for many OEM products Replaces: Direct replacement for Jard 92360, Mars 90360, Packard PR360, RBM 90-360, Zettler 2900-1A-24A, Zettler AZ 2900-1A-24A
Quality: Our products are manufactured and tested following International Standard specifications for a direct replacement option for many OEM products
Replaces: Direct replacement for Jard 92360, Mars 90360, Packard PR360, RBM 90-360, Zettler 2900-1A-24A, Zettler AZ 2900-1A-24A
Universal: This Switching relay also known as fan relay hvac will work with any unit where the electrical requirements are met by the products specifications
Use: Designed for use in Heating, Air Conditioning, Refrigeration and Ventilation Applications. Universal design for other application that meet electrical specs
Weight
0.18 LBR
Volume
0.005 FTQ
Model
APFR-360
UPC-EAN
814245027810
