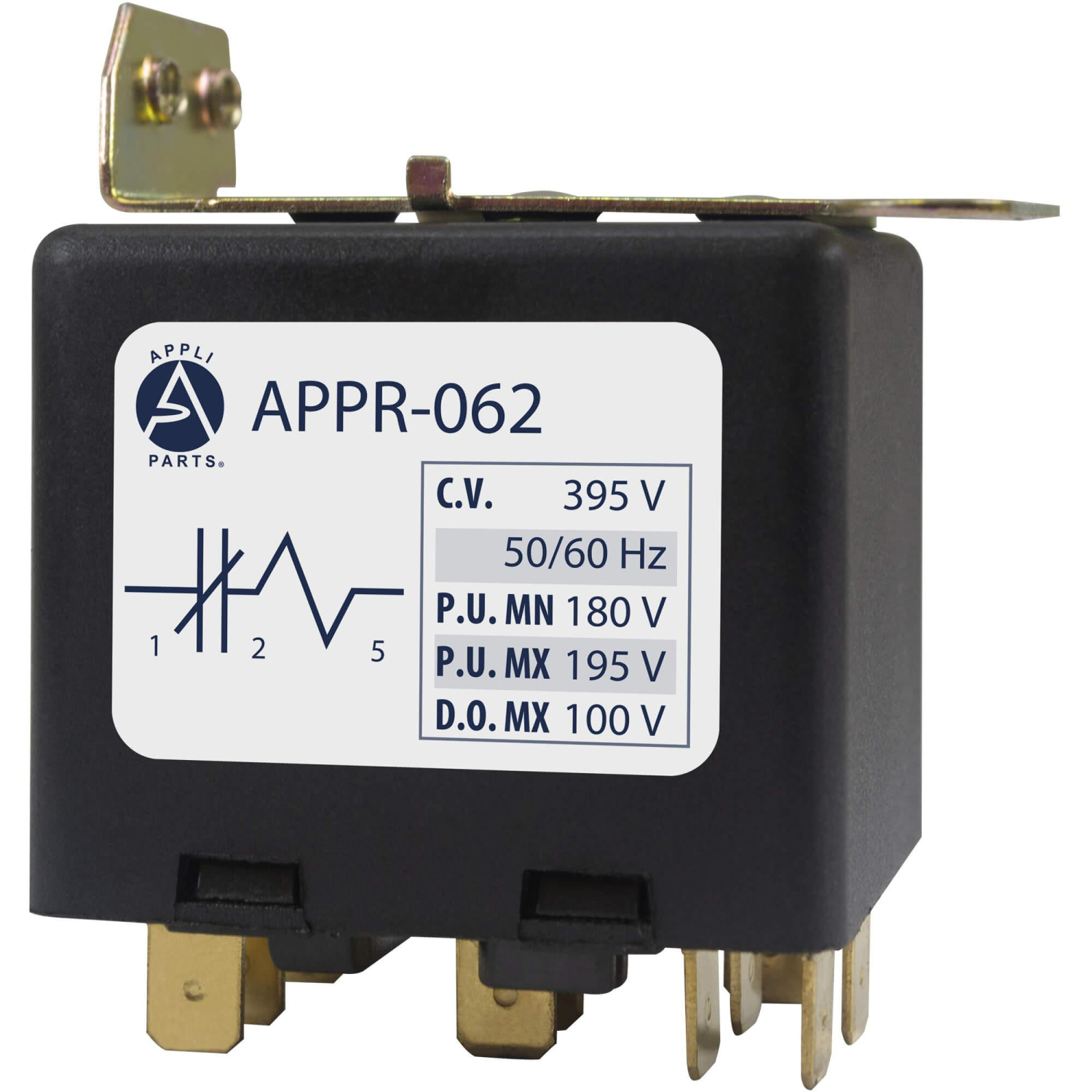

Appli Parts Potential Relay 062 Coil Voltage 395V Min Pick up 180V Max Pick up 195V Max Drop Out 100V 50/60 Hz Universal replacement for HVAC and Refrigeration units APPR-062

Appli Parts Potential Relay 062 Coil Voltage 395V Min Pick up 180V Max Pick up 195V Max Drop Out 100V 50/60 Hz Universal replacement for HVAC and Refrigeration units APPR-062

$19.84 ($1.00 EA)

Size Guide

Tags Supco potential Relay supco relay

Appli Parts Potential Relay 062 Coil Voltage 395V Min Pick up 180V Max Pick up 195V Max Drop Out 100V 50/60 Hz Universal replacement for HVAC and Refrigeration units APPR-062
Use: Potential Relays are used to engage and disengage the Start Capacitor once the unit is started. Failing to disconnect the Start capacitor will cause electrical damage

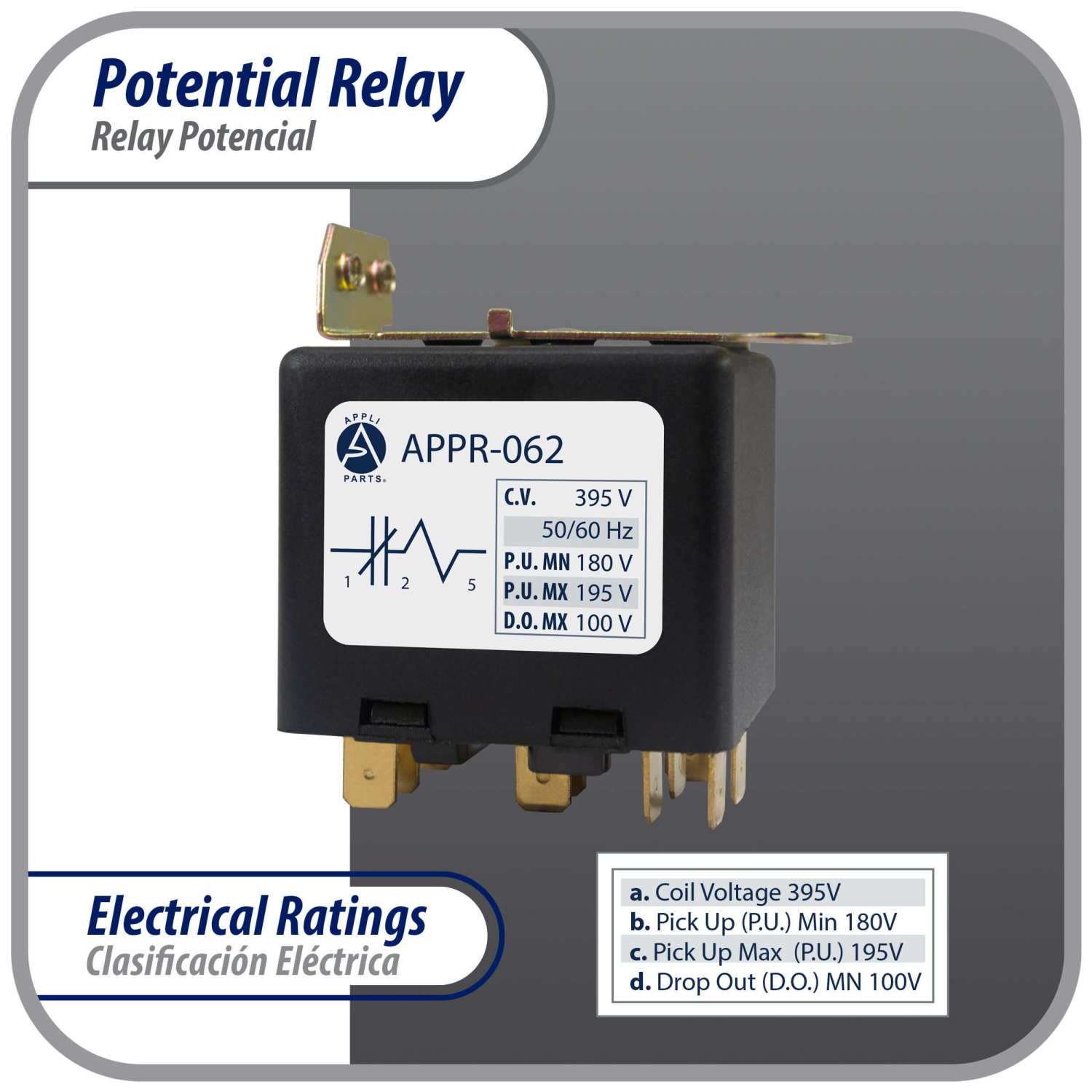

Specs: Coil Voltage is 395V. Minimum Pick Up 180V. Maximum Pick Up 195V. Maximum Drop Out 100V. Can be used in 50/60 Hz applications

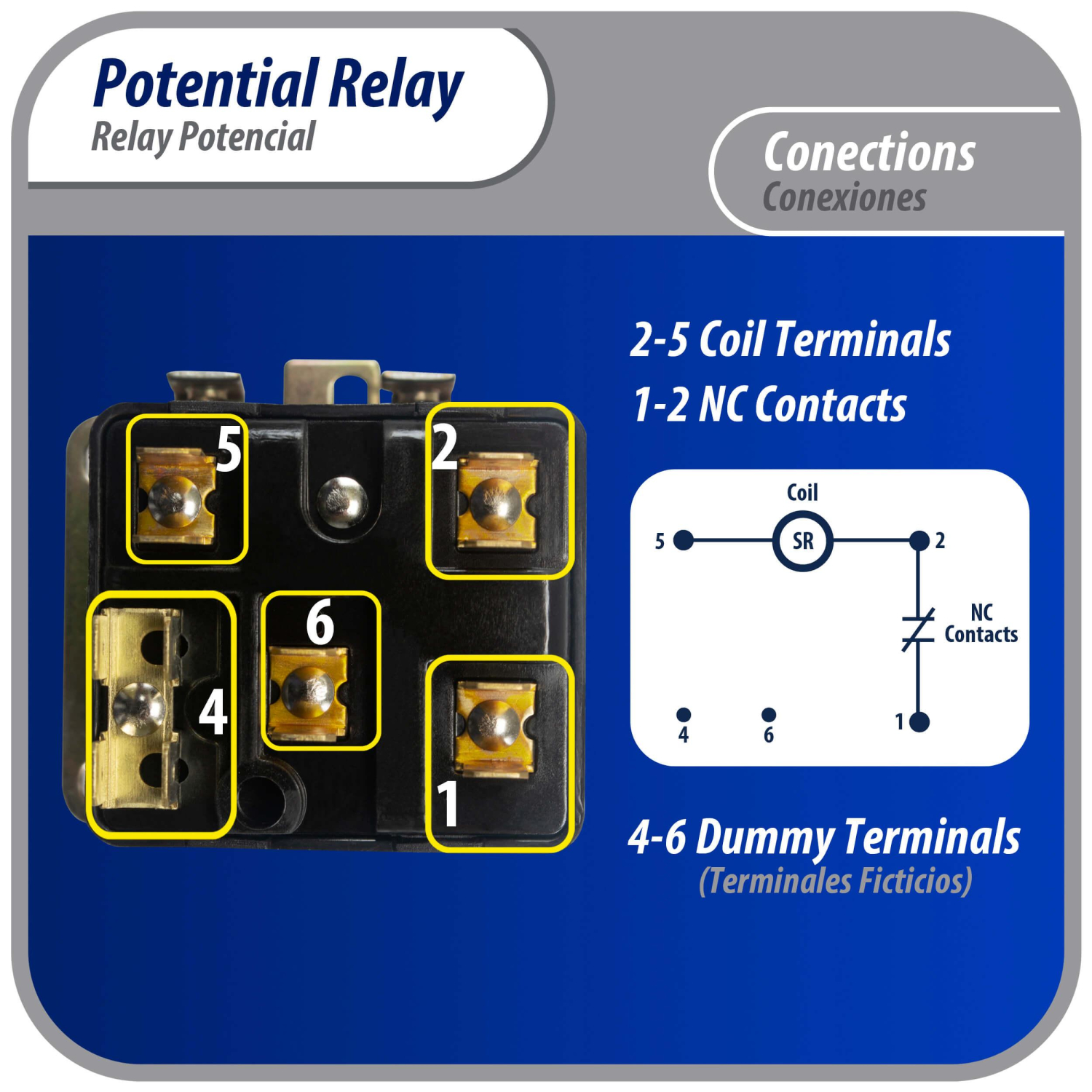

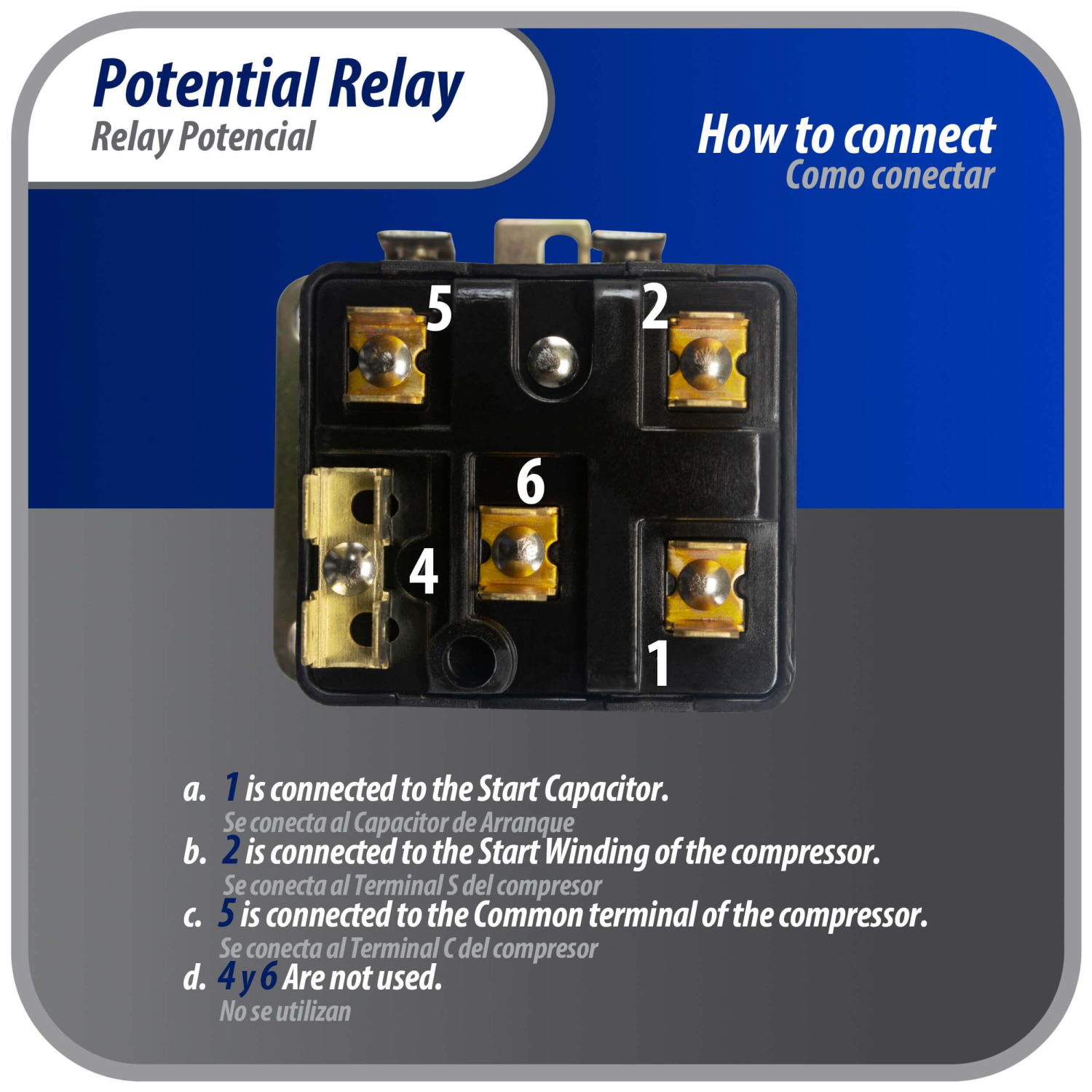

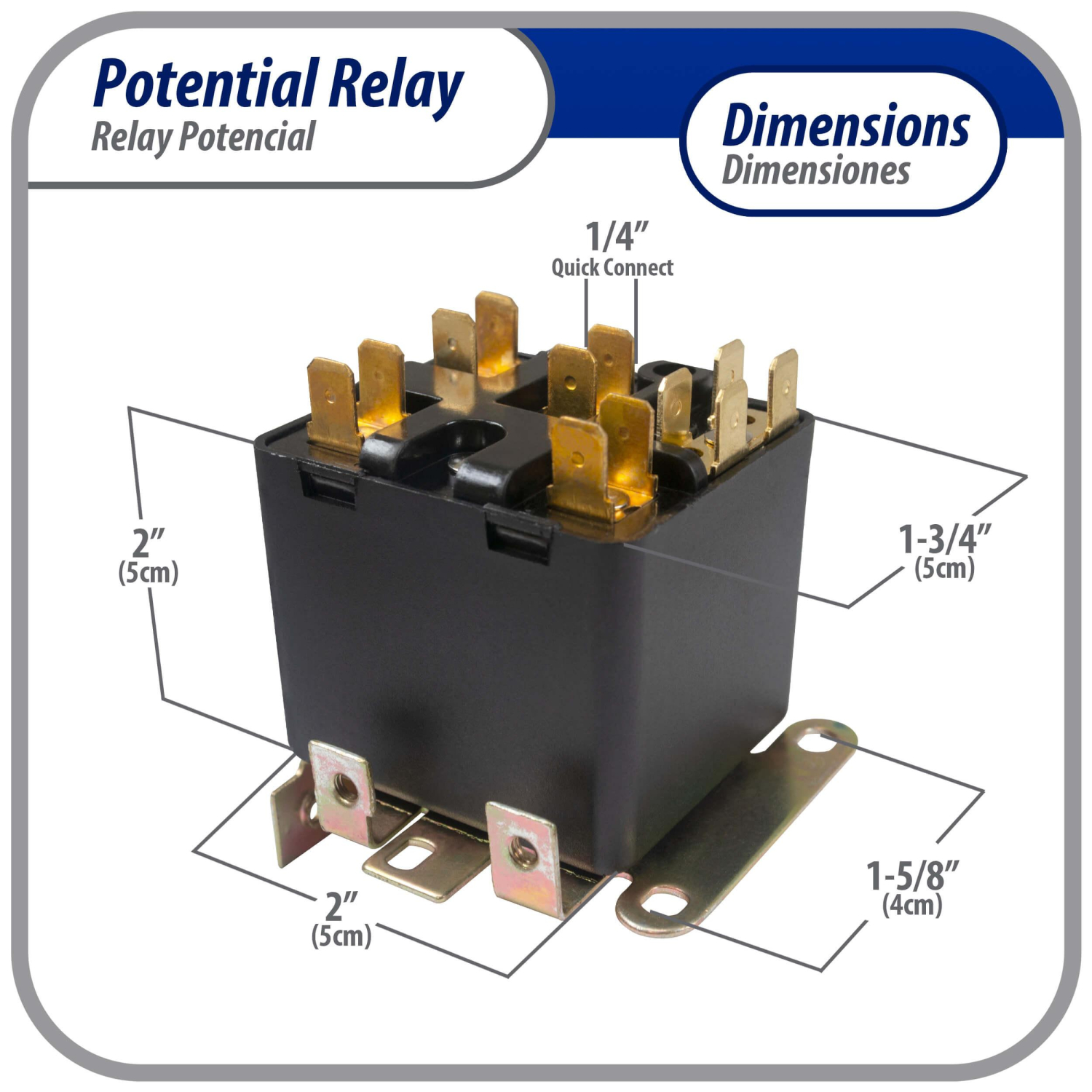

Connections: There are 6 sets of 1/4in connectors. 1-2 Normally Closed Contacts. 2-5 Coil Terminals. 4-6 Dummy Terminals

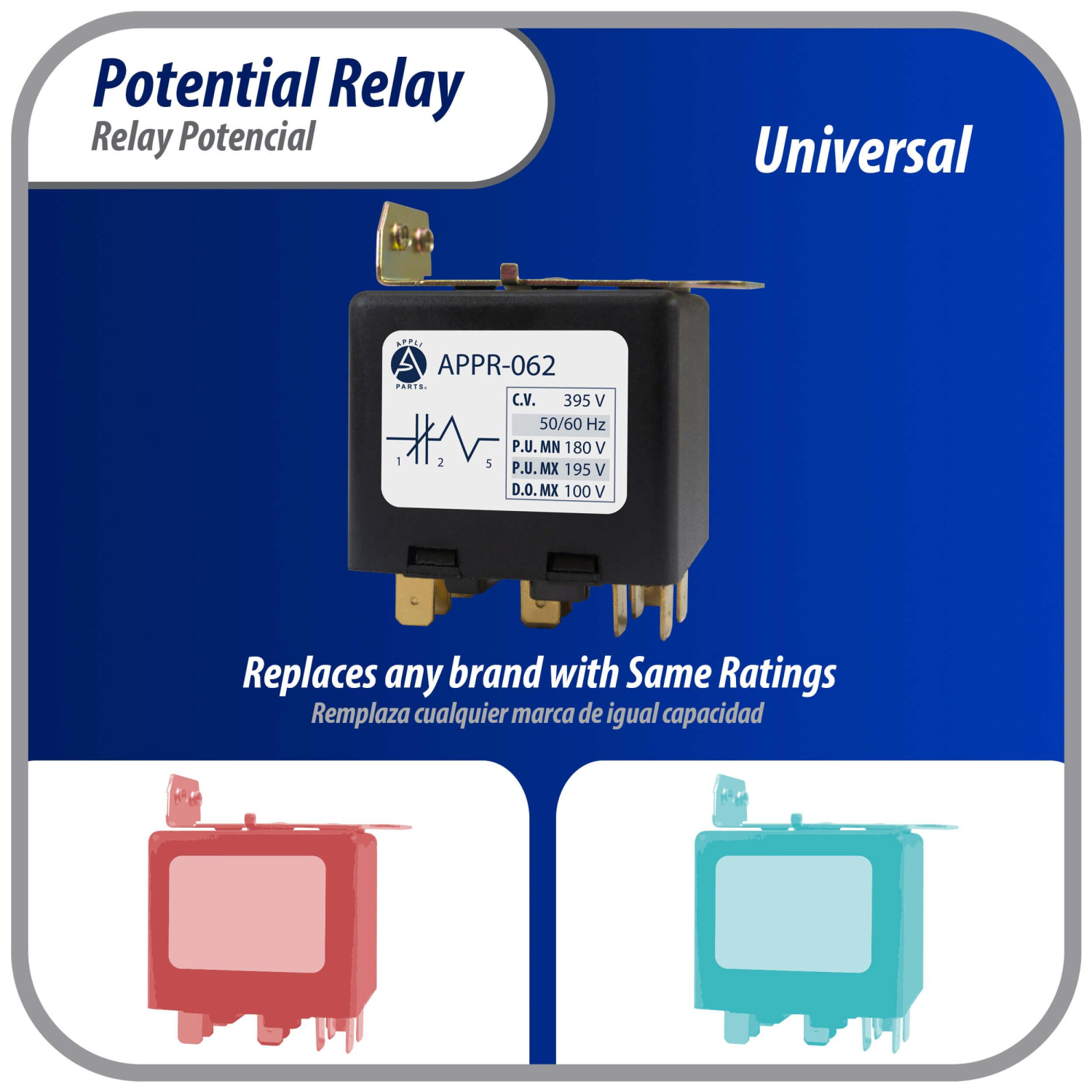

Universal: Replaces many part numbers and brands with the same electrical specs.
Quality: Products Manufactured following strict standards to comply with OEM specifications

Weight : 0.4 LBR
Volume : 0.00901964 FTQ
Model : APPR-062
UPC-EAN : 814245028336

A potential relay senses voltage across the start winding. When this voltage reaches a sufficient level, the start capacitor, which is in series with the start winding, must be disconnected from the circuit. When a capacitor start motor runs, a voltage is induced in the start winding.
Potential relays also known as voltage relays are used in capacitor-start capacitor-run (CSR) motors. CSR motors have very high starting torque but run efficiently once started. The potential relay's only function is to assist in starting the motor.
Use: Potential Relays are used to engage and disengage the Start Capacitor once the unit is started. Failing to disconnect the Start capacitor will cause electrical damage
Specs: Coil Voltage is 395V. Minimum Pick Up 180V. Maximum Pick Up 195V. Maximum Drop Out 100V. Can be used in 50/60 Hz applications
Connections: There are 6 sets of 1/4in connectors. 1-2 Normally Closed Contacts. 2-5 Coil Terminals. 4-6 Dummy Terminals
Universal: Replaces many part numbers and brands with the same electrical specs.
Quality: Products Manufactured following strict standards to comply with OEM specifications

Reference G2009.62

In stock 126 Items

Condition New

Data sheet

Product Feature: Connections: There are 6 sets of 1/4in connectors. 1-2 Normally Closed Contacts. 2-5 Coil Terminals. 4-6 Dummy Terminals
Quality: Products Manufactured following strict standards to comply with OEM specifications
Specs: Coil Voltage is 395V. Minimum Pick Up 180V. Maximum Pick Up 195V. Maximum Drop Out 100V. Can be used in 50/60 Hz applications
Universal: Replaces many part numbers and brands with the same electrical specs.
Use: Potential Relays are used to engage and disengage the Start Capacitor once the unit is started. Failing to disconnect the Start capacitor will cause electrical damage
Weight: 0.4 LBR
Volume: 0.00901964 FTQ
Model: APPR-062
UPC-EAN: 814245028336
