90342 Appli Parts General Purpose Switching Relay Double Pole Double Throw 208-240VAC Coil for HVAC applications and other general electrical installations APSR-342
$17.67($1.00 EA)
90342 Appli Parts General Purpose Switching Relay Double Pole Double Throw 208-240VAC Coil for HVAC applications and other general electrical installations APSR-342
90342 Appli Parts General Purpose Switching Relay Double Pole Double Throw 208-240VAC Coil for HVAC applications and other general electrical installations APSR-342 Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications Details: Coil Voltage is 208-240 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed Quality: Our products are manufactured following High Quality Standards to comply with international certifications and performance expected from Original manufactured equipment Replaces: This product is a direct replacement for Jard 92342, RBM 90-342, White-Rodgers 90-342, Mars 90342, Honeywell R4222D1021, Supco 90342, Packard PR342, 90-112, Zettler ZC90342

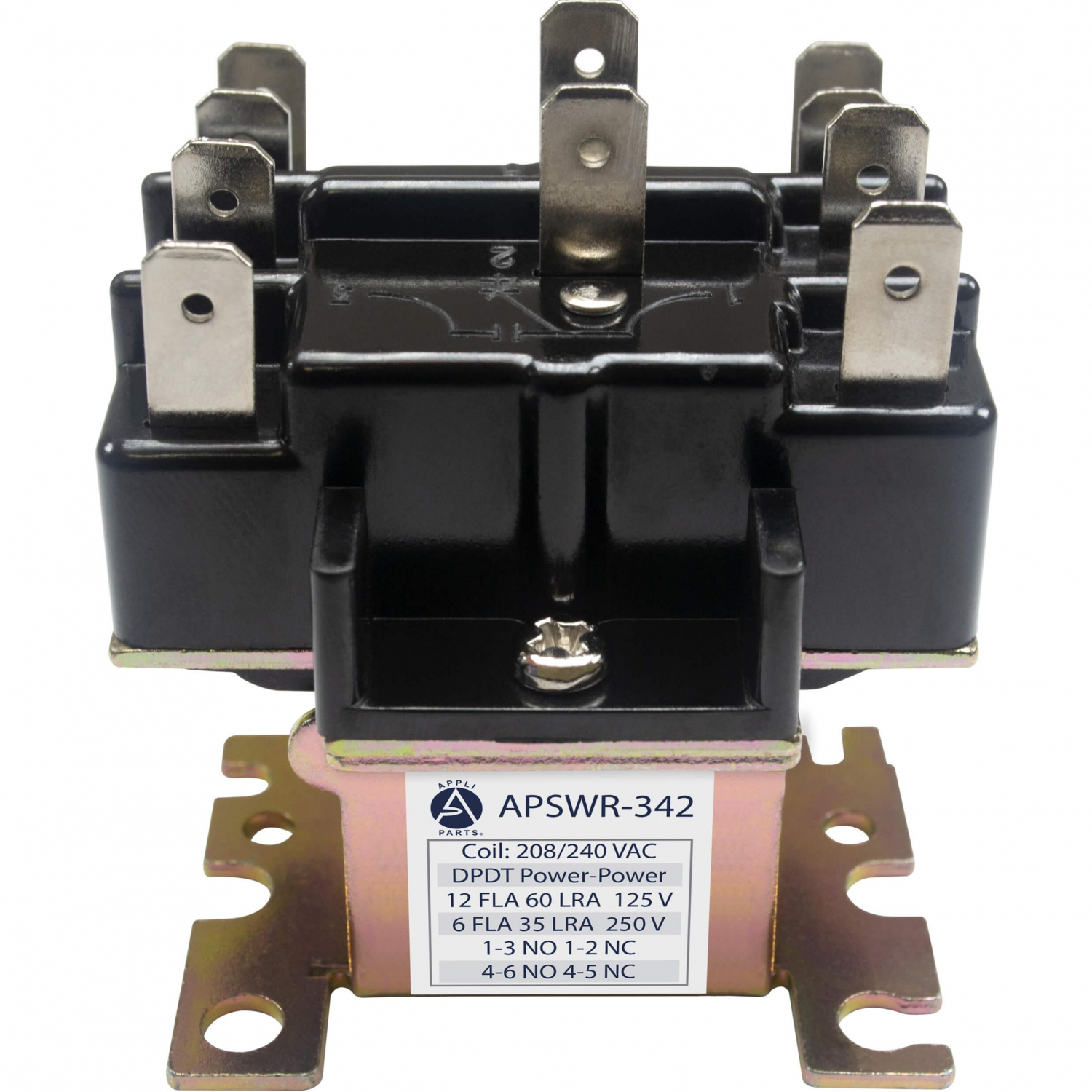

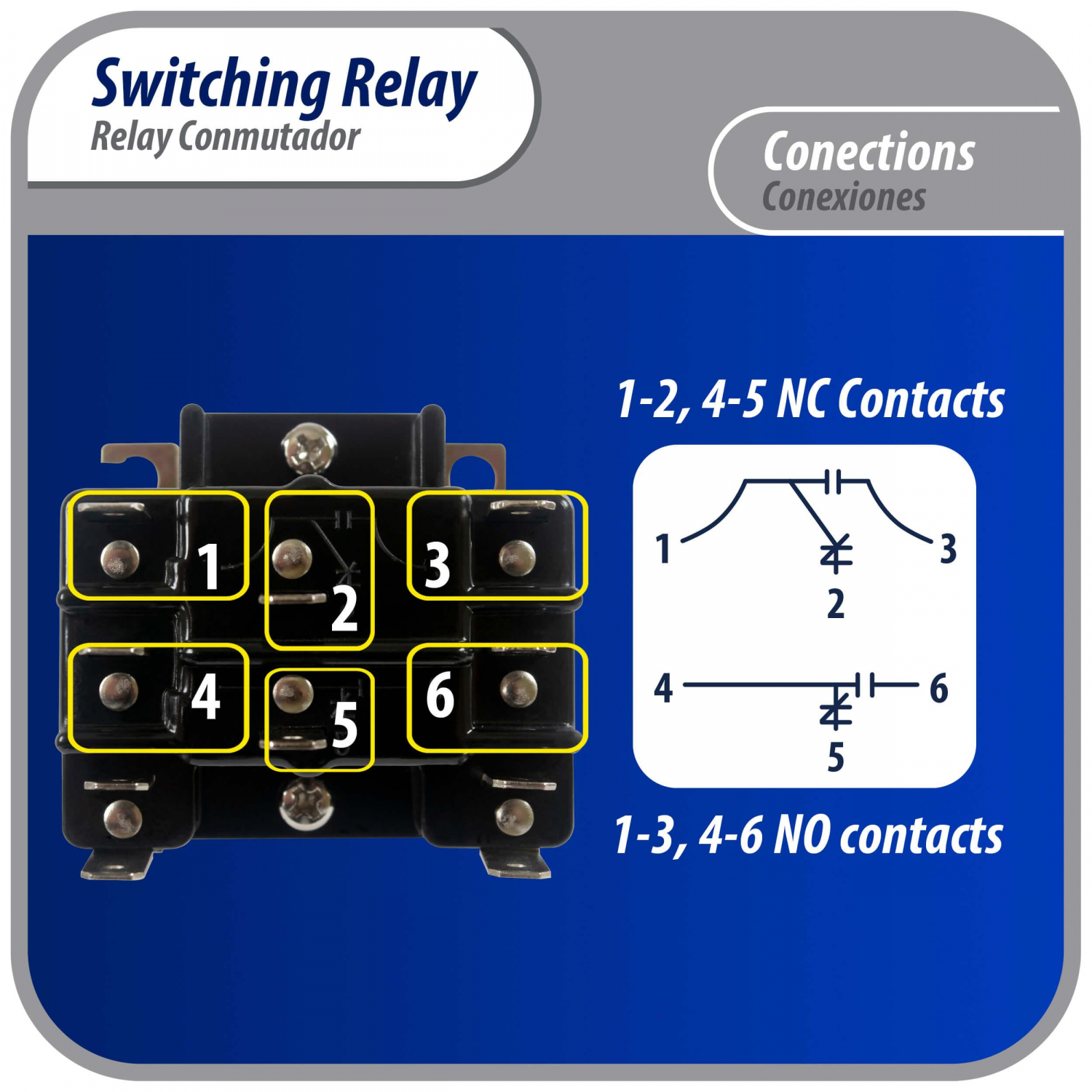

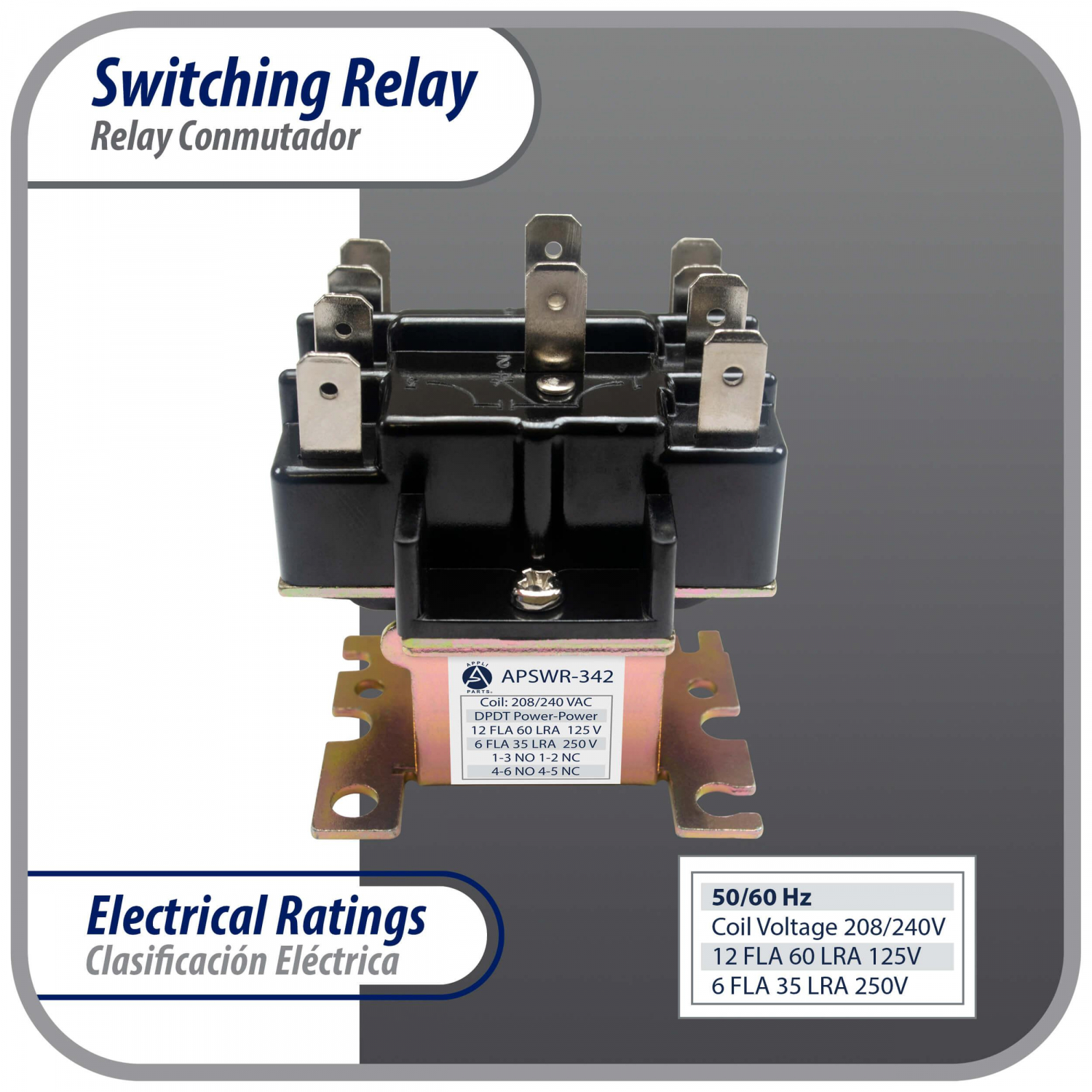

Details: Coil Voltage is 208-240 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V
Quality: Our products are manufactured following High Quality Standards to comply with international certifications and performance expected from Original manufactured equipment
Replaces: This product is a direct replacement for Jard 92342, RBM 90-342, White-Rodgers 90-342, Mars 90342, Honeywell R4222D1021, Supco 90342, Packard PR342, 90-112, Zettler ZC90342

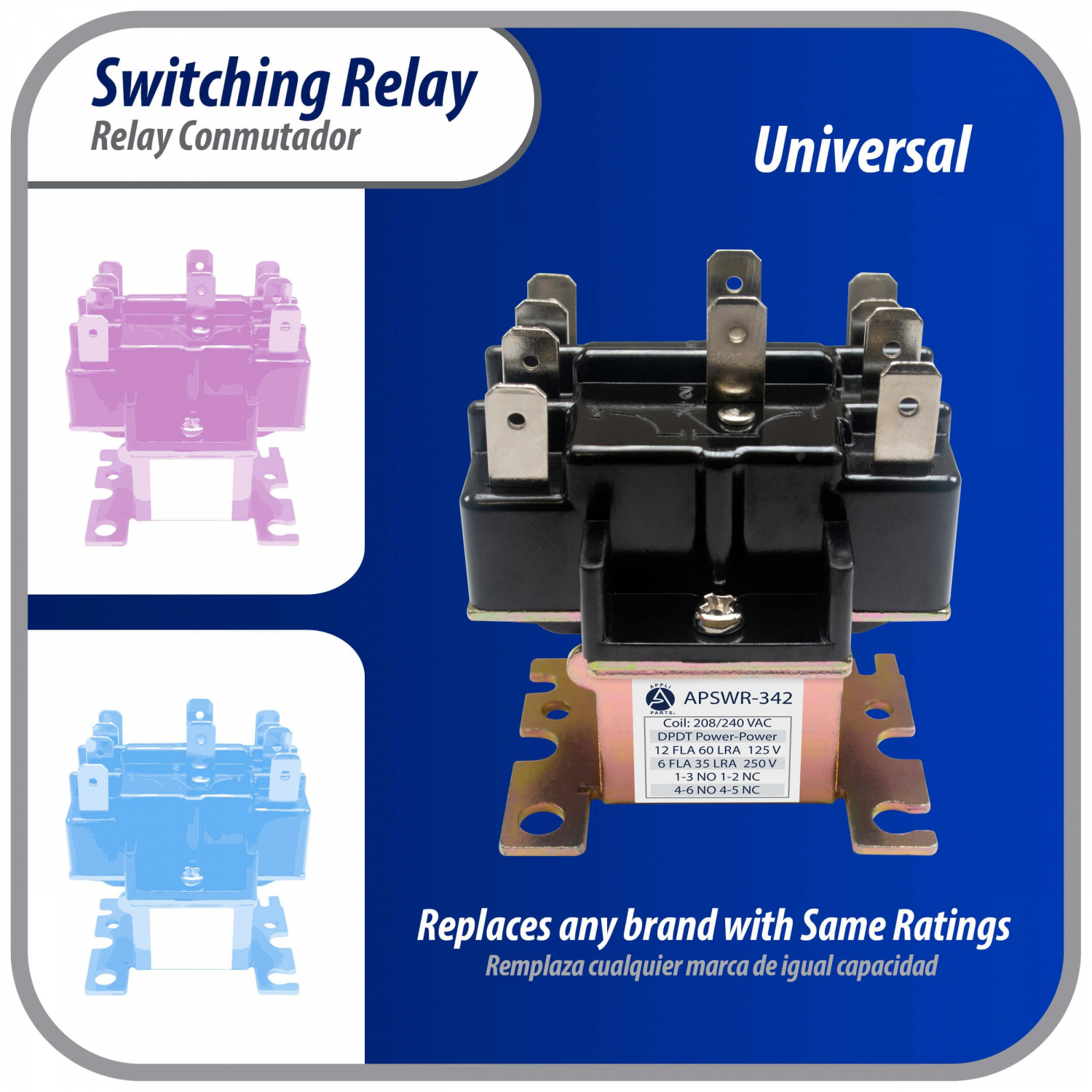

Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed
Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications
Weight
0.37 LBR
Volume
0.0086 FTQ
Model
APSR-342
UPC-EAN
814245027957
