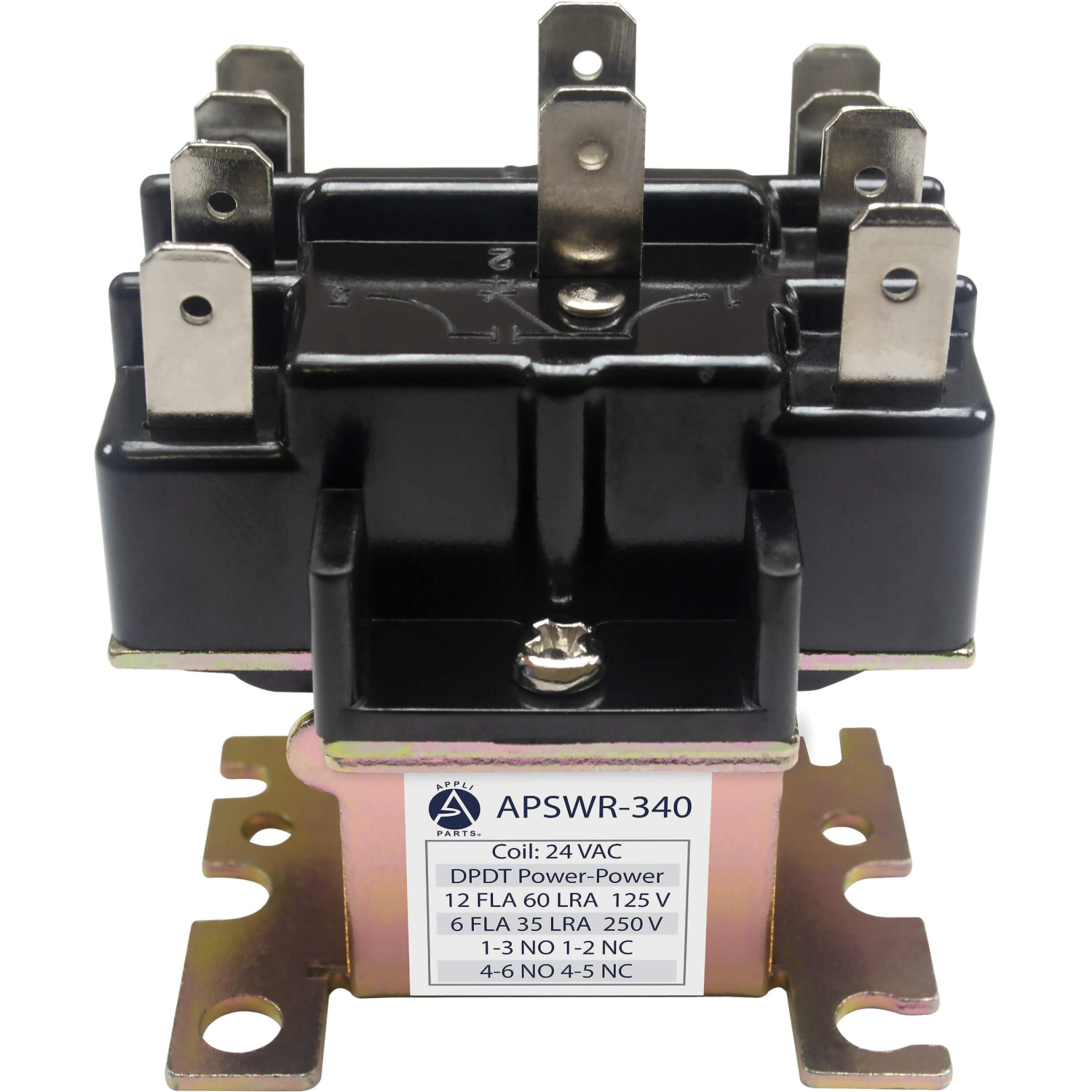

90340 Appli Parts General Purpose Switching Relay Double Pole Double Throw 24VAC Coil for HVAC applications and other general electrical installations APSR-340
$17.67($1.00 EA)
90340 Appli Parts General Purpose Switching Relay Double Pole Double Throw 24VAC Coil for HVAC applications and other general electrical installations APSR-340
90340 Appli Parts General Purpose Switching Relay Double Pole Double Throw 24VAC Coil for HVAC applications and other general electrical installations APSR-340 Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications Details: Coil Voltage is 24 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed Quality: Our products are manufactured following High Quality Standards to comply with international certifications and performance expected from Original manufactured equipment Replaces: This product is a direct replacement for 92340, JFR340, RBM 90-340, 90-340, 90340, 90340, R8222D1014, 92340, D-90340, PR340, ZC90340

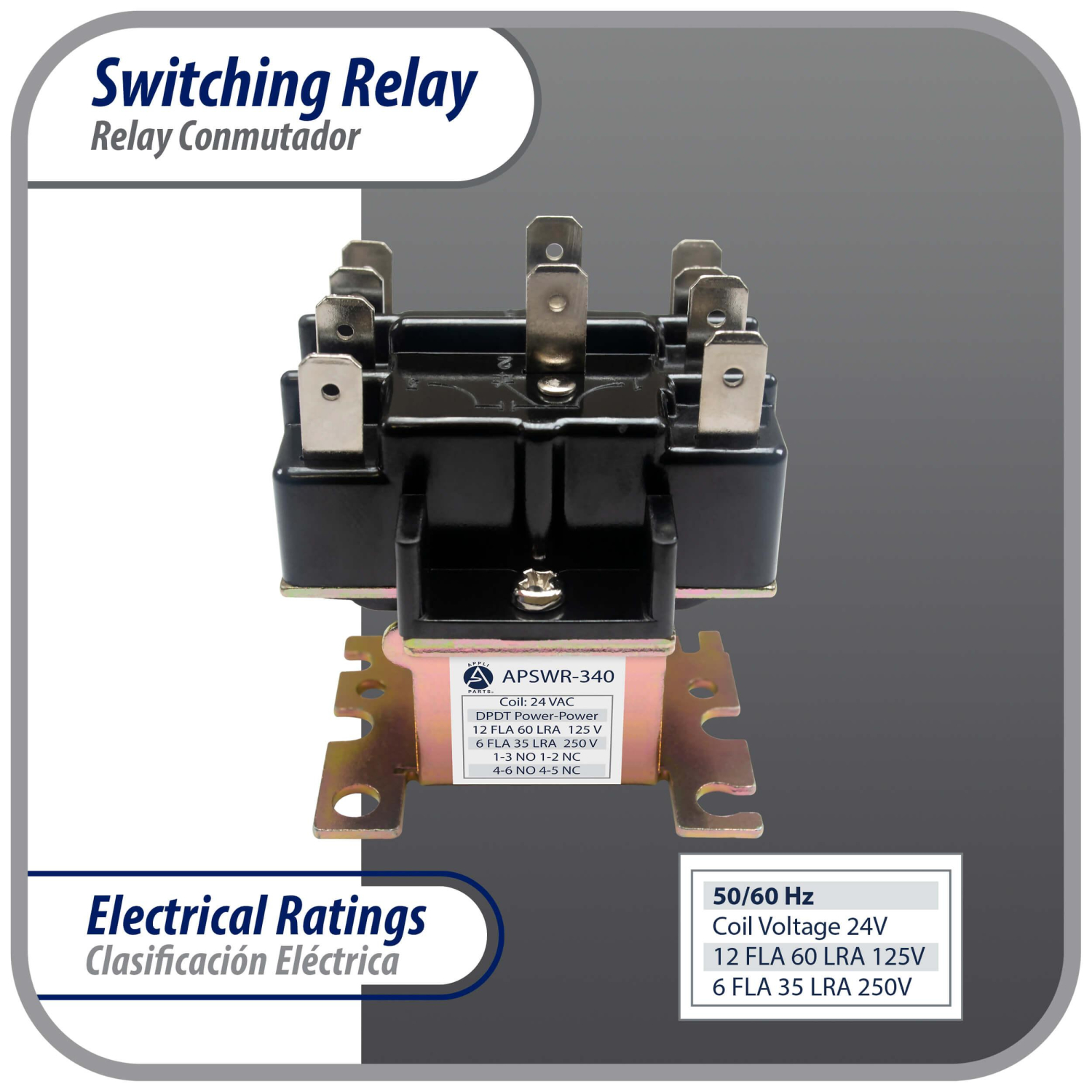

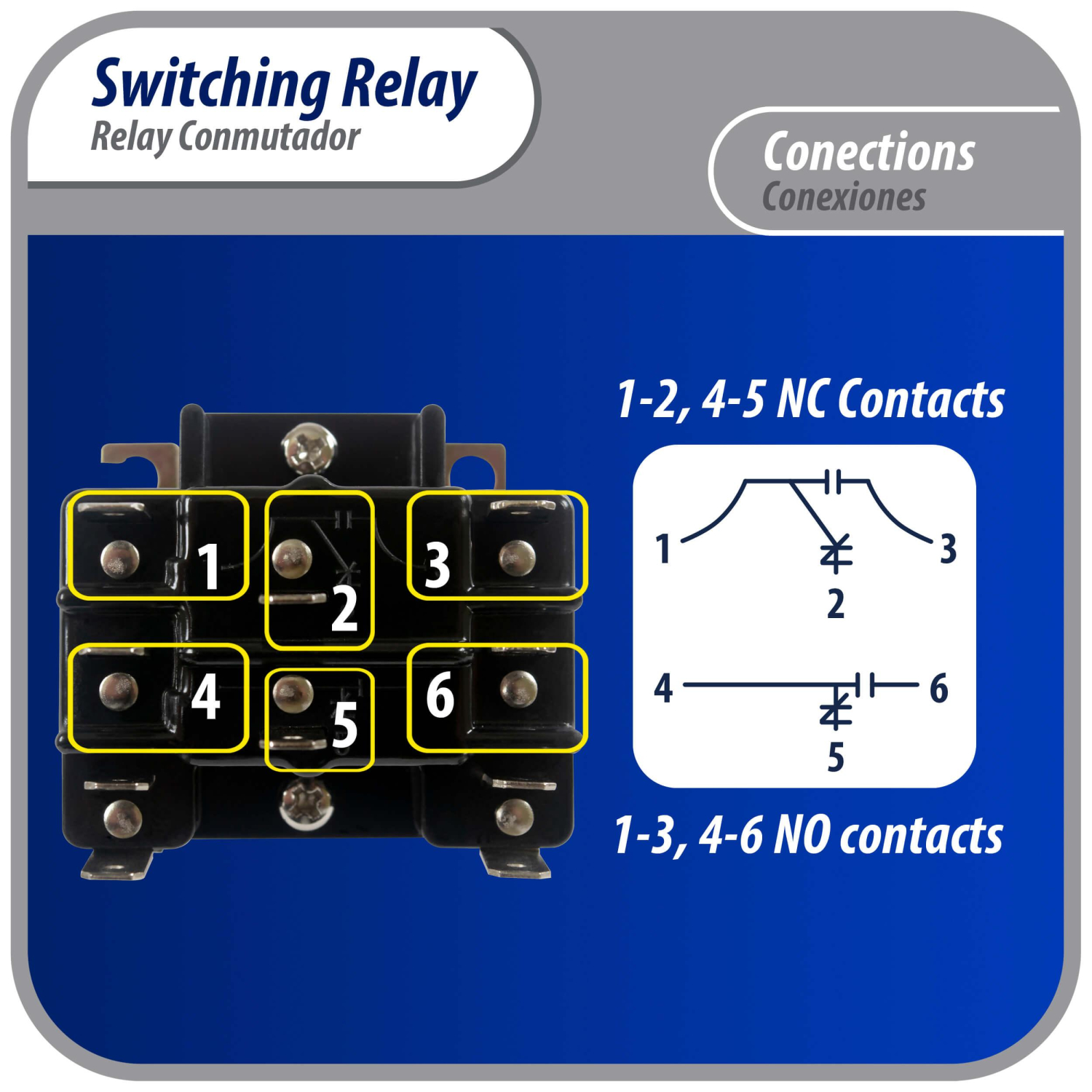

Details: Coil Voltage is 24 Volts. 2 sets of Terminal Power 1-2-3 where 1-3 is NO and 4-5-6 where 4-6 is NO. Double Pole Double Throw Switch. 12 FLA 60 LRA at 125V and 6 FLA 35 LRA at 250V
Quality: Our products are manufactured following High Quality Standards to comply with international certifications and performance expected from Original manufactured equipment
Replaces: This product is a direct replacement for 92340, JFR340, RBM 90-340, 90-340, 90340, 90340, R8222D1014, 92340, D-90340, PR340, ZC90340

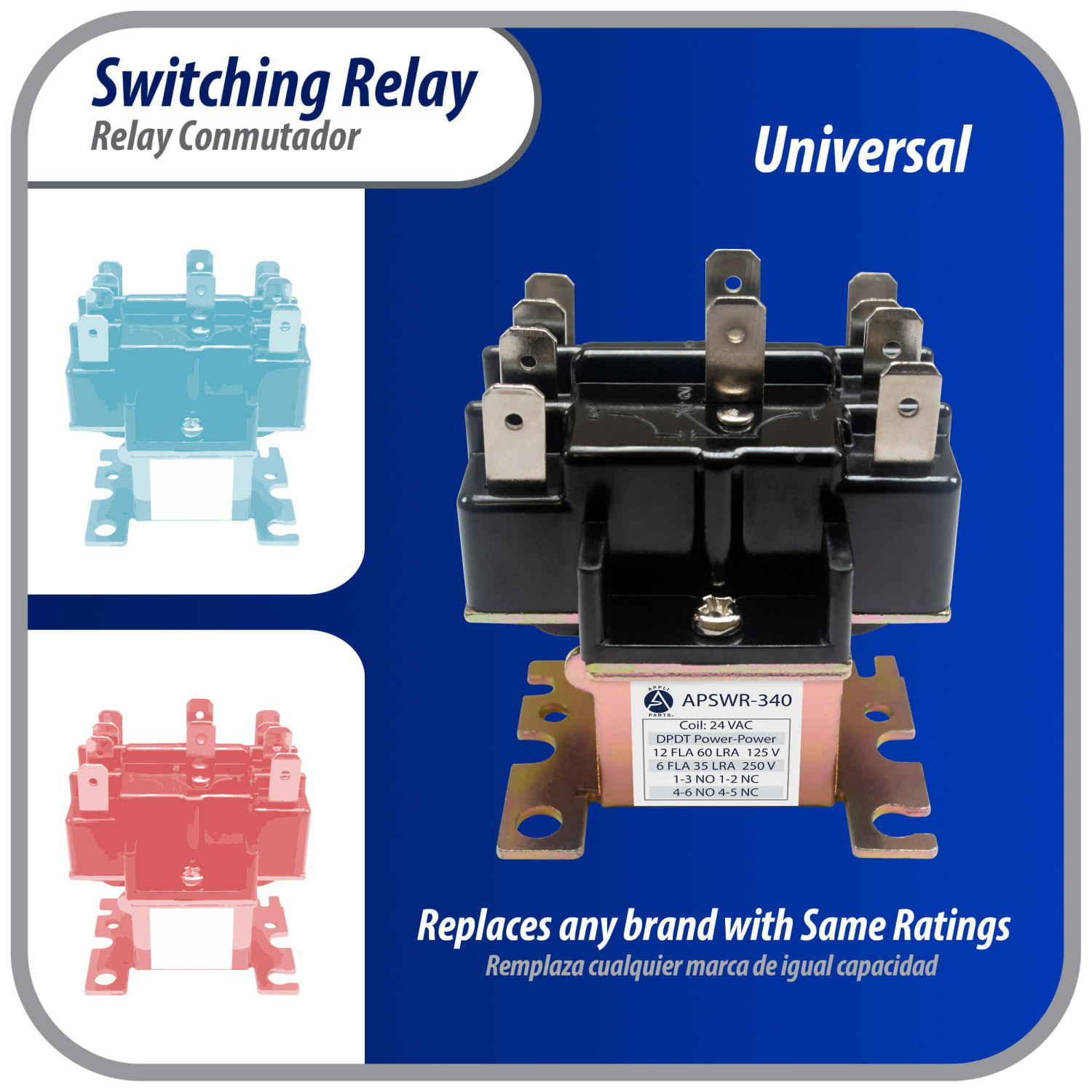

Universal: Will Replace any Switching Relay with the same specifications to work with any brand of motor or other electrical applications where needed
Use: For Hvac/R typically used to control the Fan motor in the air handler unit of the Air conditioning system. Can also be used for other electrical applications
Weight
0.36 LBR
Volume
0.0086 FTQ
Model
APSR-340
UPC-EAN
814245027834
