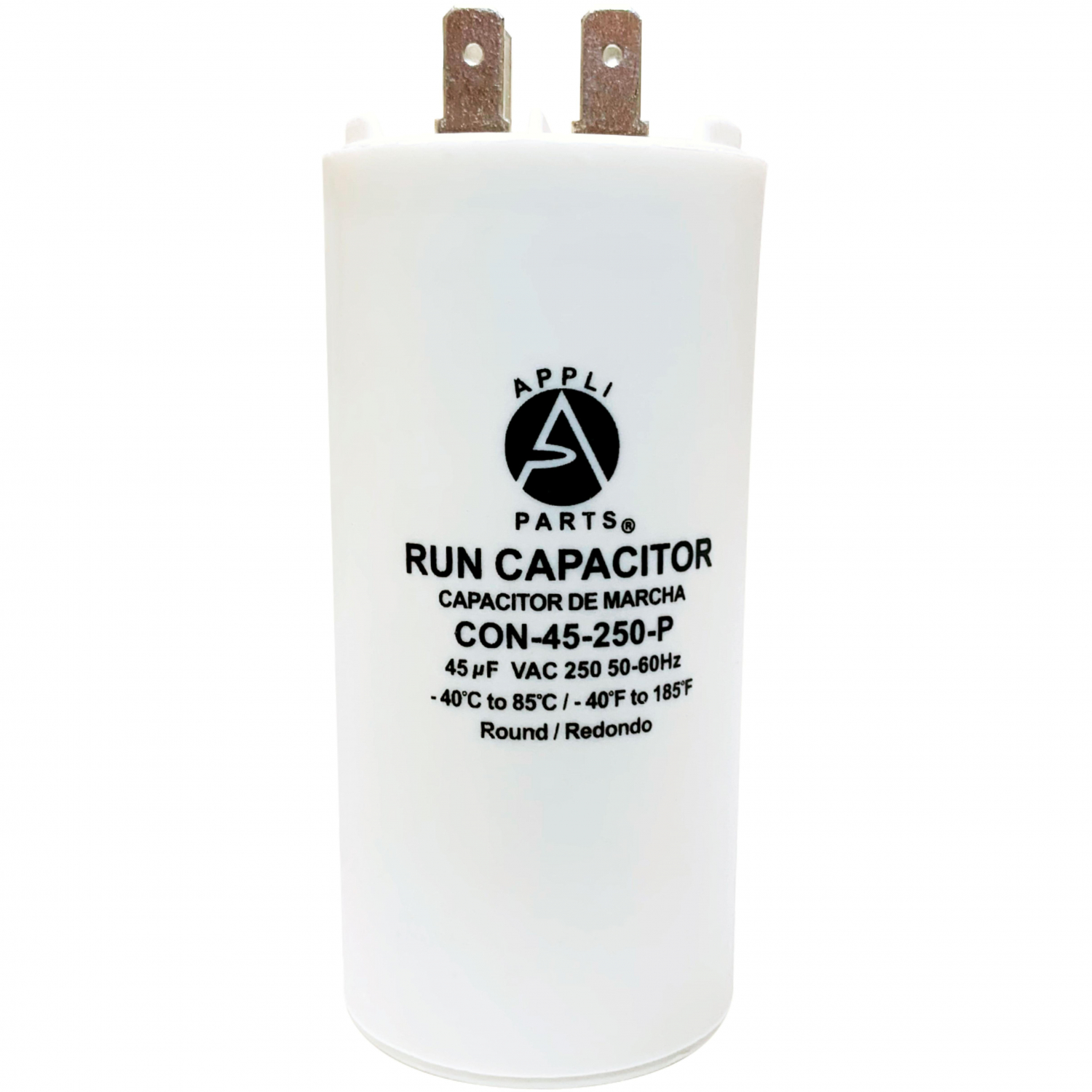

Appli Parts Run Capacitor for electric motors 45 Mfd uF (microfarads) 250VAC Plastic Case with terminals CBB60 Round Universal fit water pumps and others 4-1/4 in High 1-3/4 in Wide CON-45-250-P

Appli Parts Run Capacitor for electric motors 45 Mfd uF (microfarads) 250VAC Plastic Case with terminals CBB60 Round Universal fit water pumps and others 4-1/4 in High 1-3/4 in Wide CON-45-250-P

$13.62 ($1.00 EA)

Size Guide

Tags CARRIER conditioner charge air fan heat pump a/c unit ac compressor terminal ge brand pomp york condenser duel lennox blower round cool system efficient samaritan electric protectors central micro airpump protector motor cap dyi motors relay arranque

Appli Parts Run Capacitor for electric motors 45 Mfd uF (microfarads) 250VAC Plastic Case with terminals CBB60 Round Universal fit water pumps and others 4-1/4 in High 1-3/4 in Wide CON-45-250-P

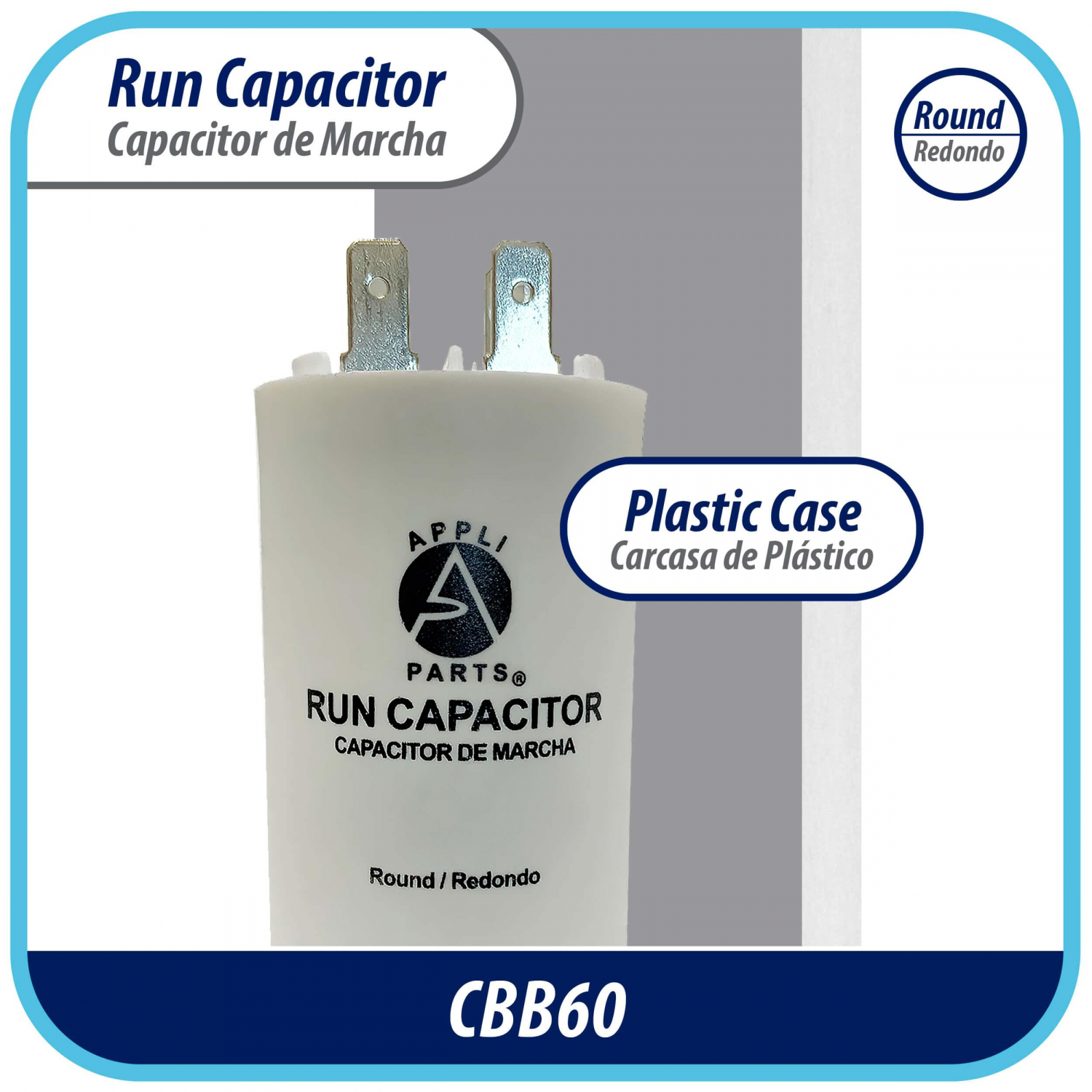

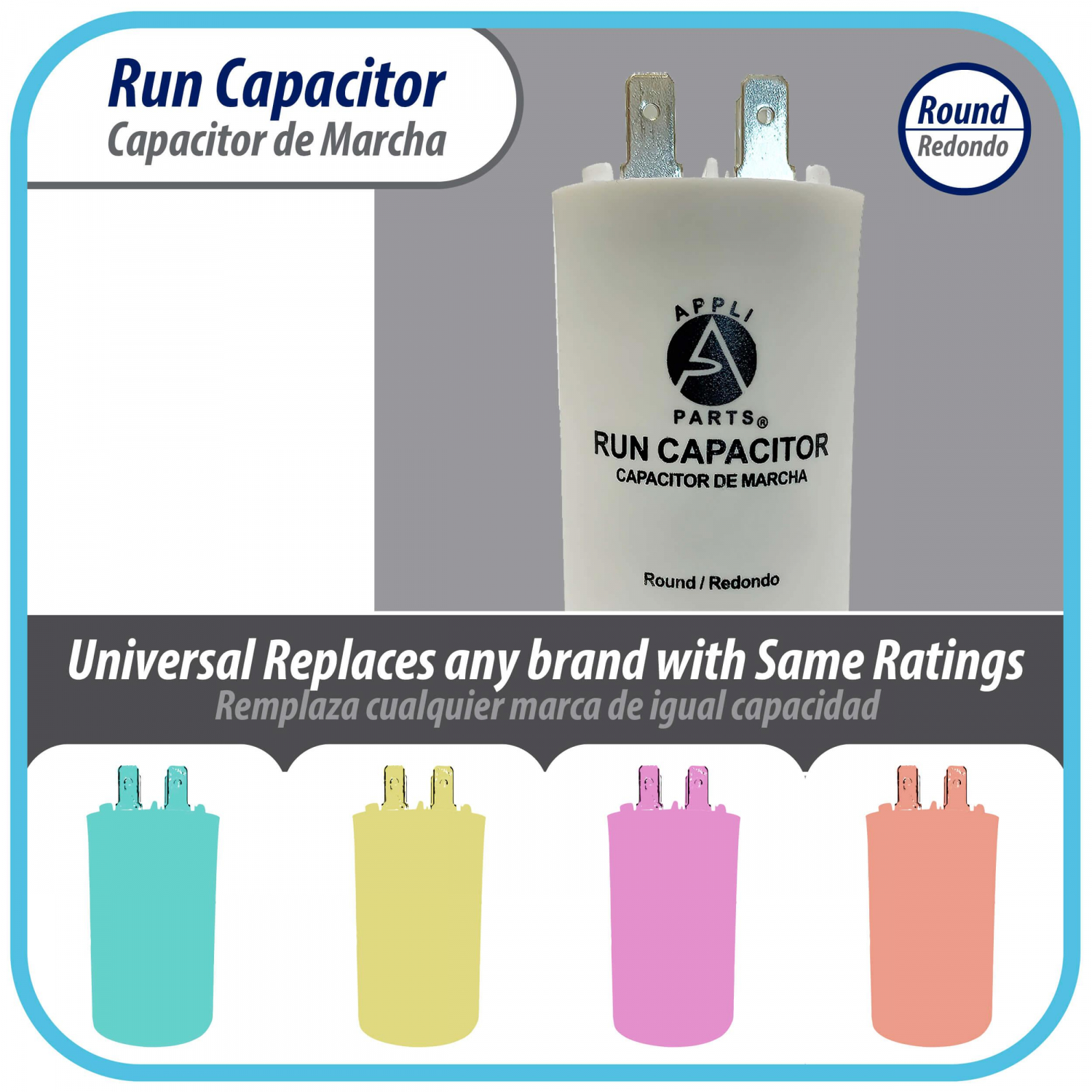

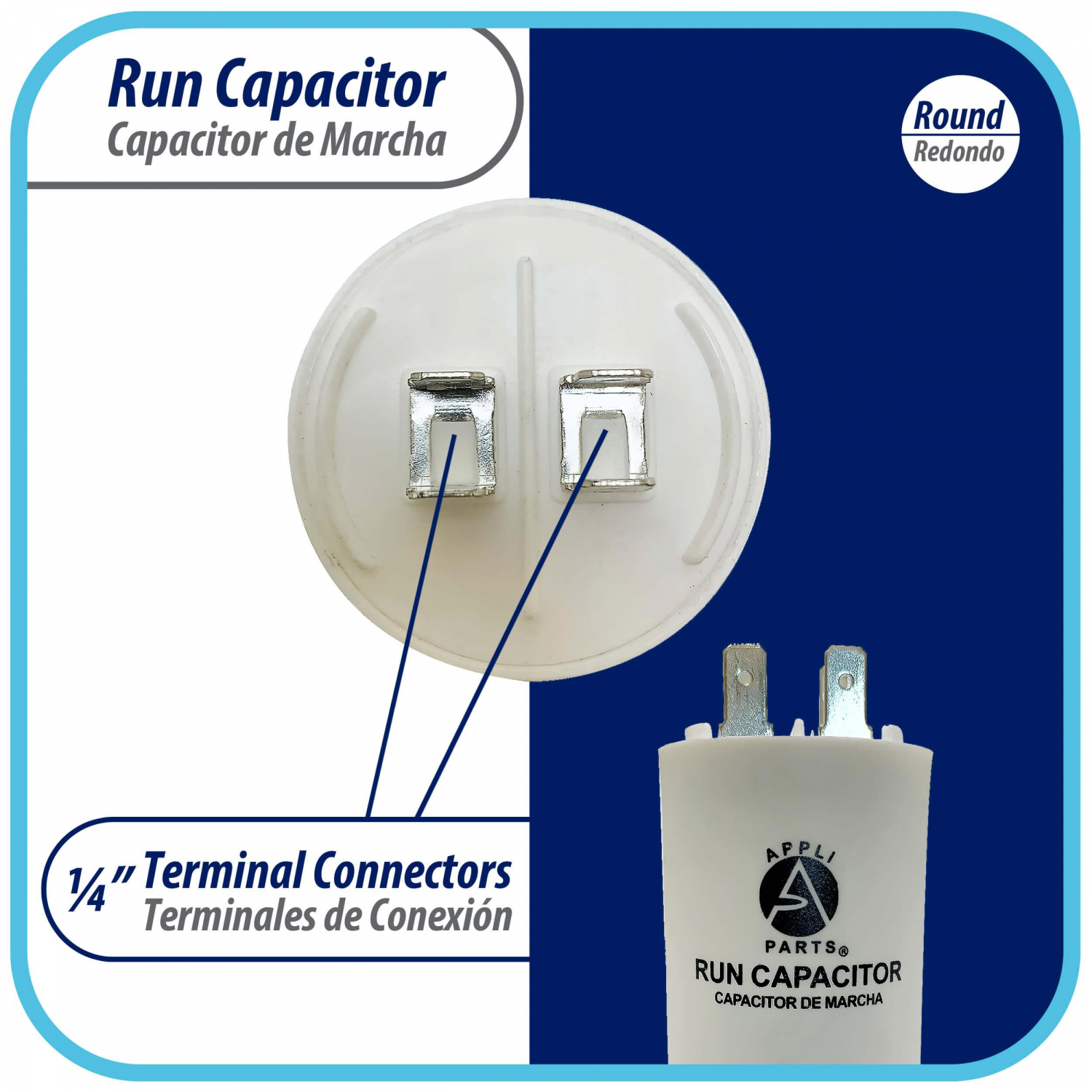

Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250V. 1/4 in Male Quick-connect. Plastic case
Quality: All our products are designed and manufactured following very strict procedures and high quality standards during their manufacture. An optimal selection of materials is made, combined with research and development procedures, which guarantee the durability and performance of each manufactured product, offering our customers the same efficiency expected from an original part. UL E476928 Certified, manufactured with No PCB

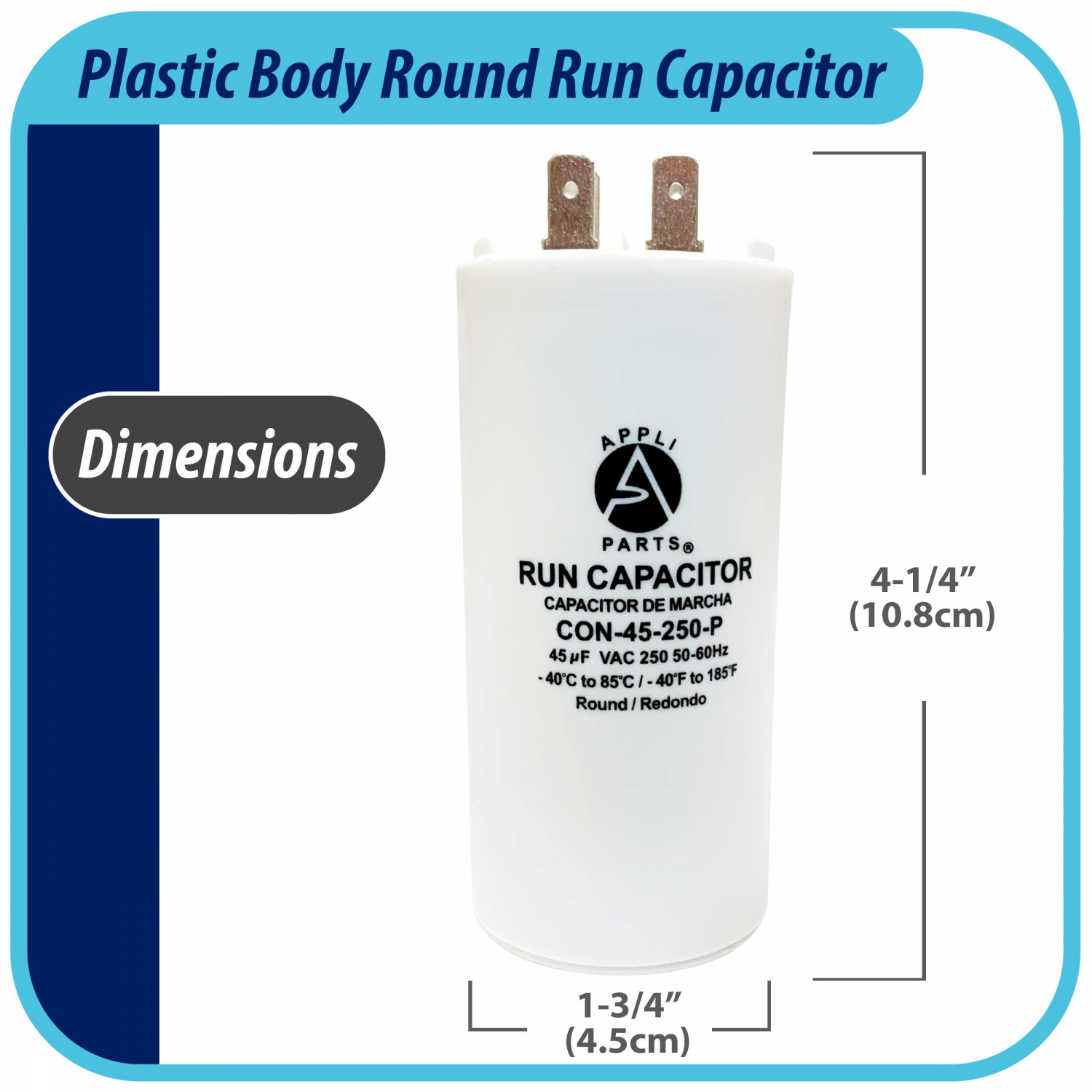

Specs: Tolerance is +/- 5 % of Capacity, Working temperature environment from -40F (-40C) to +185F (85C). Dimensions 4-1/4in High 1-3/4in Wide
Protection: Protected for 10,000AFC which means this product will not burst if by any reason is short circuits
Replaces: CAP-45-250-P
Volume : 0.02 FTQ

Weight : 0.33 LBR
Model : CON-45-250-P
UPC-EAN : 814245026479

This product replaces several models and brands not limited to:

WH12X10212 WH12X10513 WH12X10240 WE4M428 228C1259P005 228C1147P002 WW01f00344 WW01F00238 228C1147P001 123C8355P006 24DB450B250PA W11158830 W10390451 WPW10625045 W10625045 W10866249 W10804665 W10278556 W10666222

Works for following models:

CAW9244BW0 CAW9244BW0 NTW4630YQ0 NTW4650YQ0 RTW4516FW1 RTW4640YQ1 WTW4800XQ4 2661532210 GTUN275EM1WW GTUP240EM1WW GTUP270EM0WW GTUP270EM1WW GTUP270EM4WW GUD24ESSJ0WW GUD24GSSJ0WW

Reference G1111.CCP45

In stock 1141 Items

Condition New

Data sheet

Product Feature: Guarantee: UL E476928 Certified, Manufactured with No Pcb
Protection: Protected for 10,000AFC which means this product will not burst if by any reason is short circuits
Replaces: CAP-45-250-P
Specs: Tolerance is +/- 5 % of Capacity, Working temperature environment from -40F (-40C) to +185F (85C). Dimensions 4-1/4in High 1-3/4in Wide
Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 250V. 1/4 in Male Quick-connect. Plastic case
Weight: 0.33 LBR
Volume: 0.02 FTQ
Model: CON-45-250-P
UPC-EAN: 814245026479
