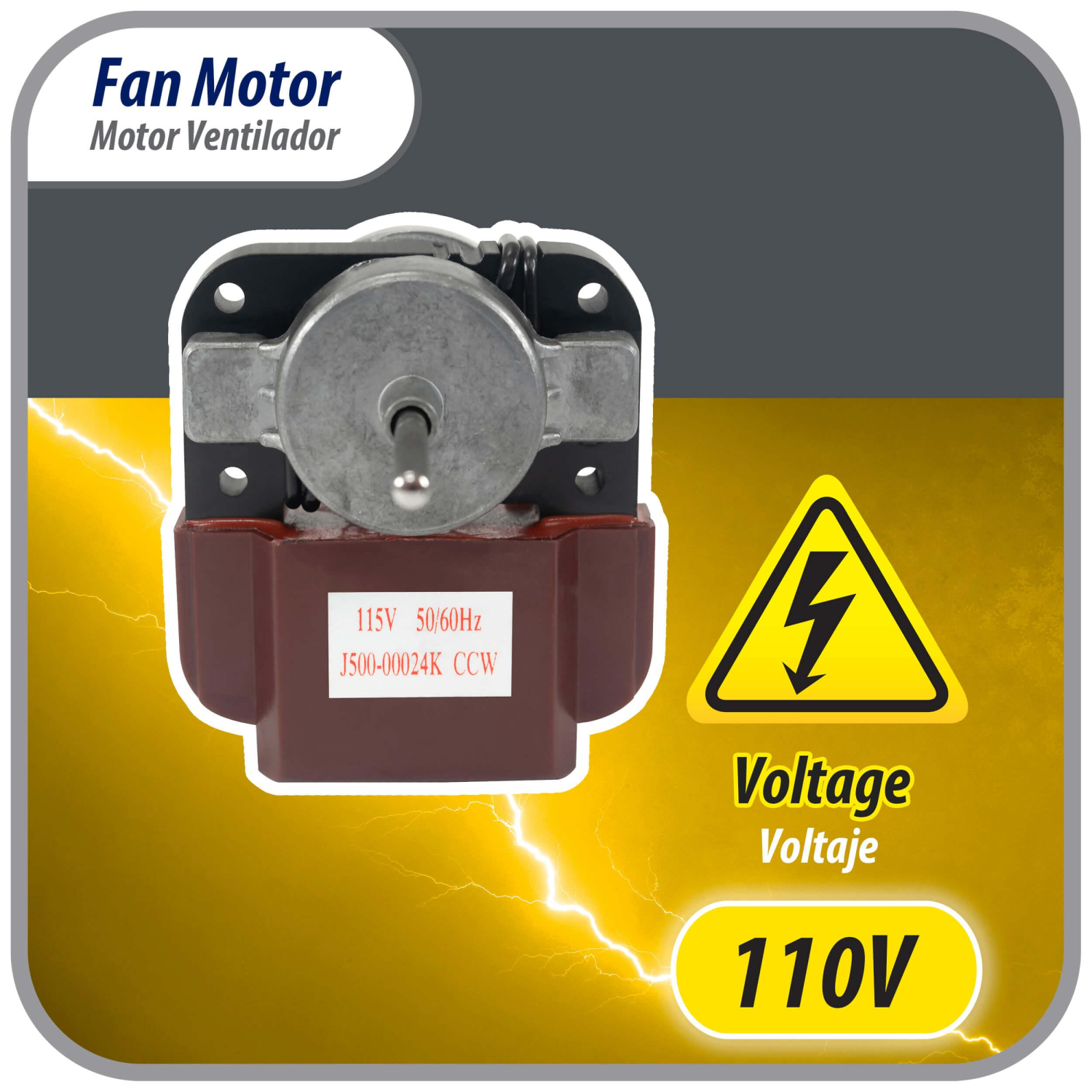

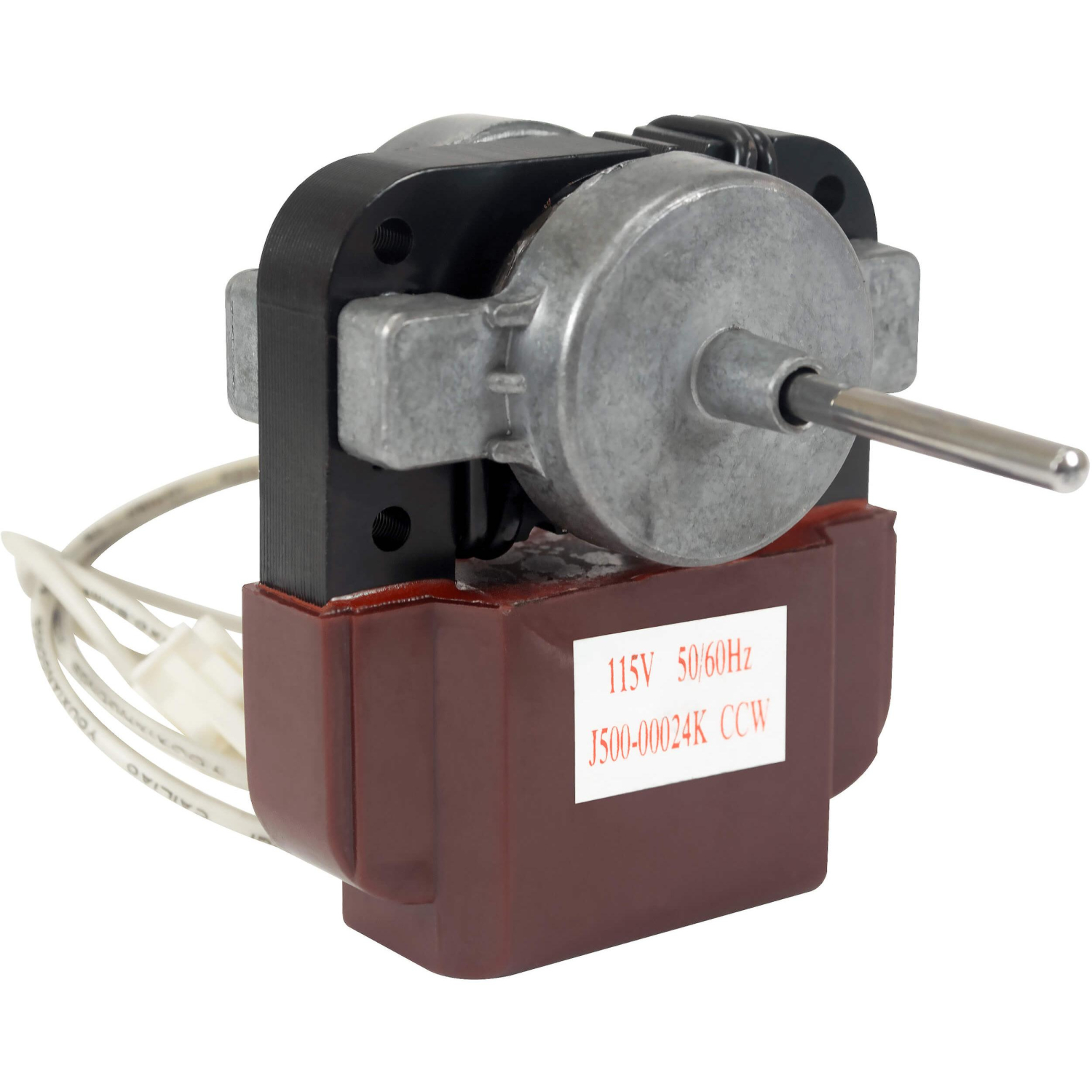

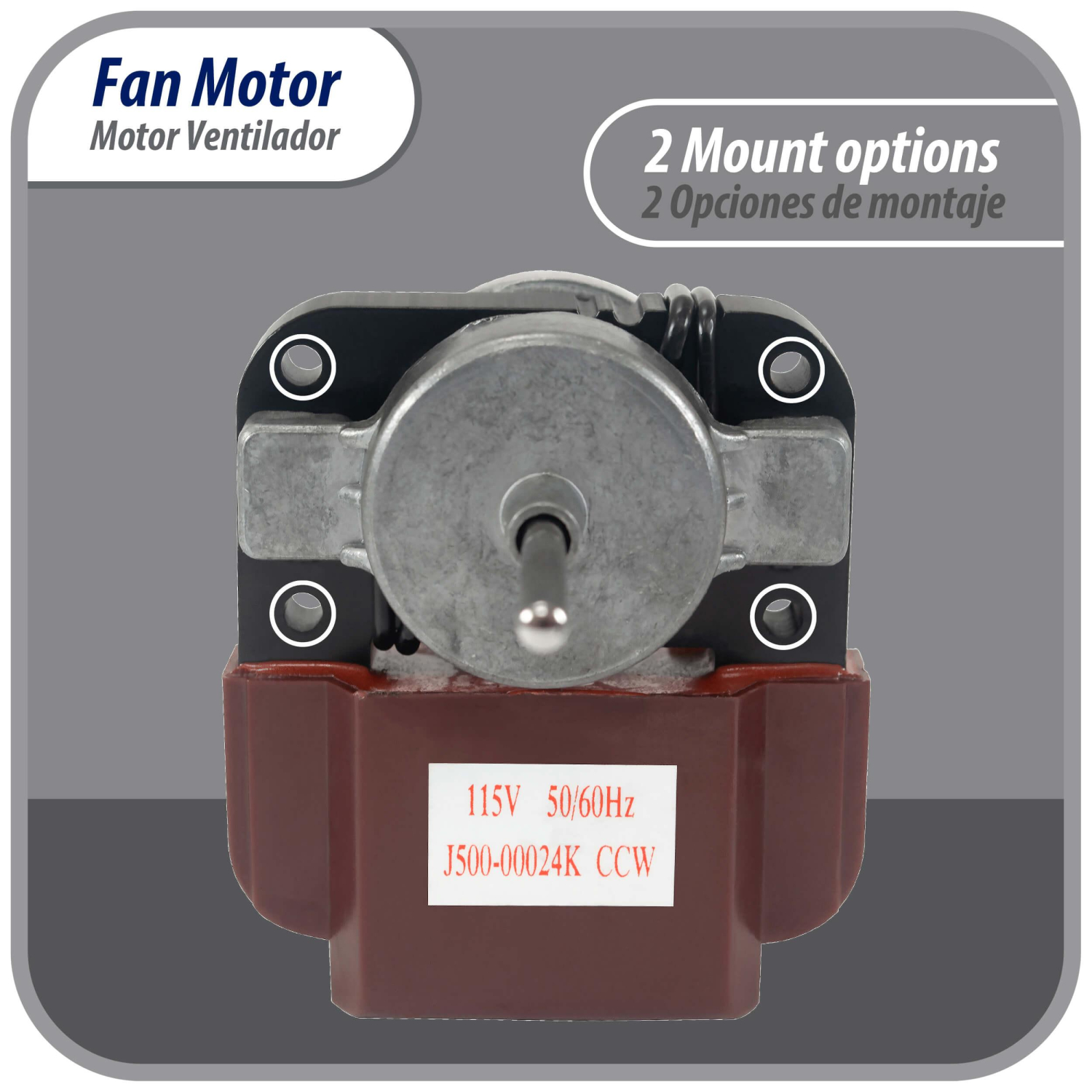

Appli Parts Fan Motor for evaporators will replace LG Samsung J500-00024K 110V 50/60Hz 0.16A 8W 2800rpm CCW Universal mount will fit any application with same ratings APFM-500
$27.23($1.00 EA)
Appli Parts Fan Motor for evaporators will replace LG Samsung J500-00024K 110V 50/60Hz 0.16A 8W 2800rpm CCW Universal mount will fit any application with same ratings APFM-500
Appli Parts Fan Motor for evaporators will replace LG Samsung J500-00024K 110V 50/60Hz 0.16A 8W 2800rpm CCW Universal mount will fit any application with same ratings APFM-500
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same Specs: Fan motor for 110V 50-60Hz 8W 0.16A 2800rpm. Shaft is 1-1/4in Long 3/16in diam. 12in Cable with quick connect clip connection. Plastic sealed cover Replaces: Will replace multiple brands and models specially LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs. J500-00024K Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft Quality: Our products are manufactured following Original Equipment Manufacturers high quality standards for universal replacement parts to perform according to specs
Quality: Our products are manufactured following Original Equipment Manufacturers high quality standards for universal replacement parts to perform according to specs
Replaces: Will replace multiple brands and models specially LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs. J500-00024K

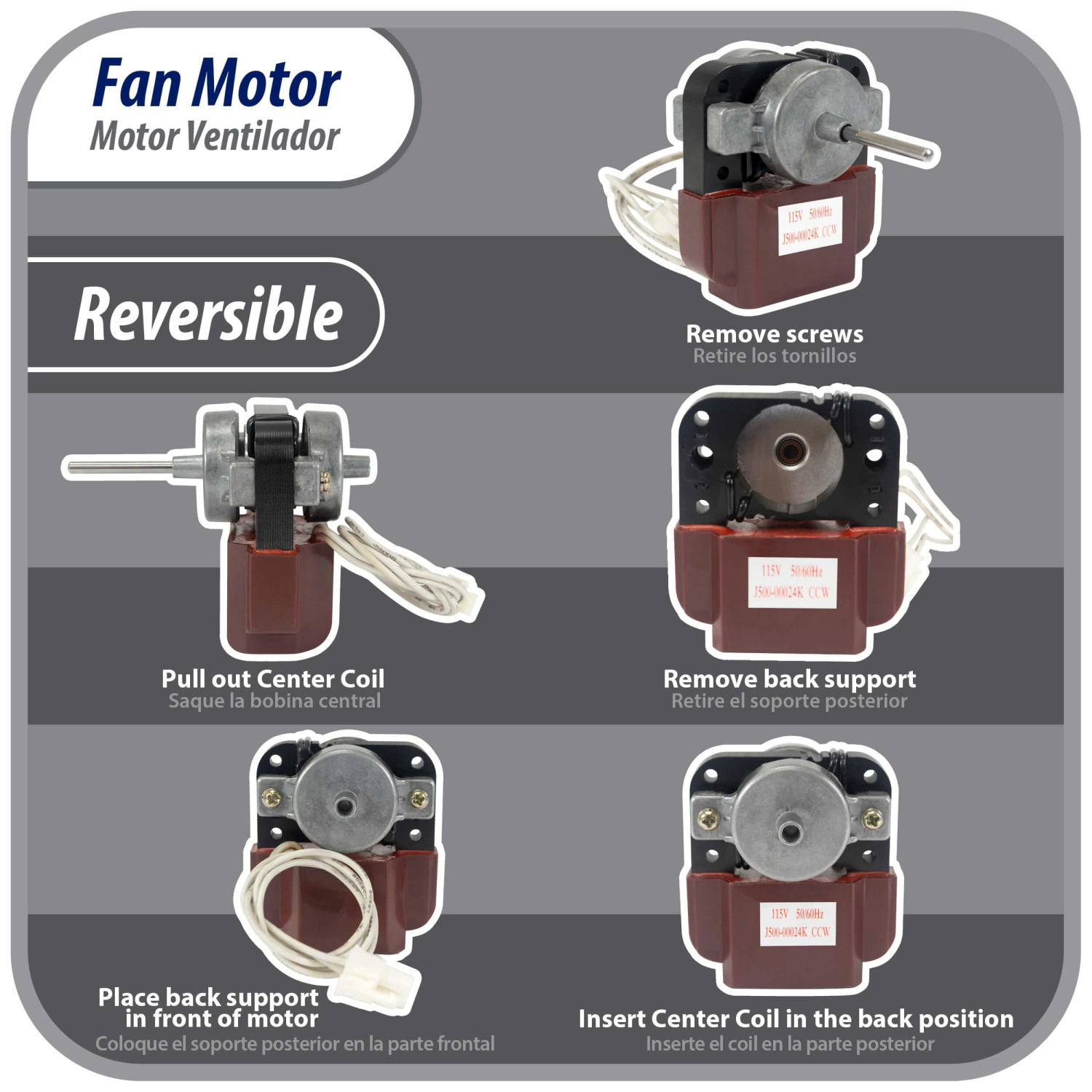

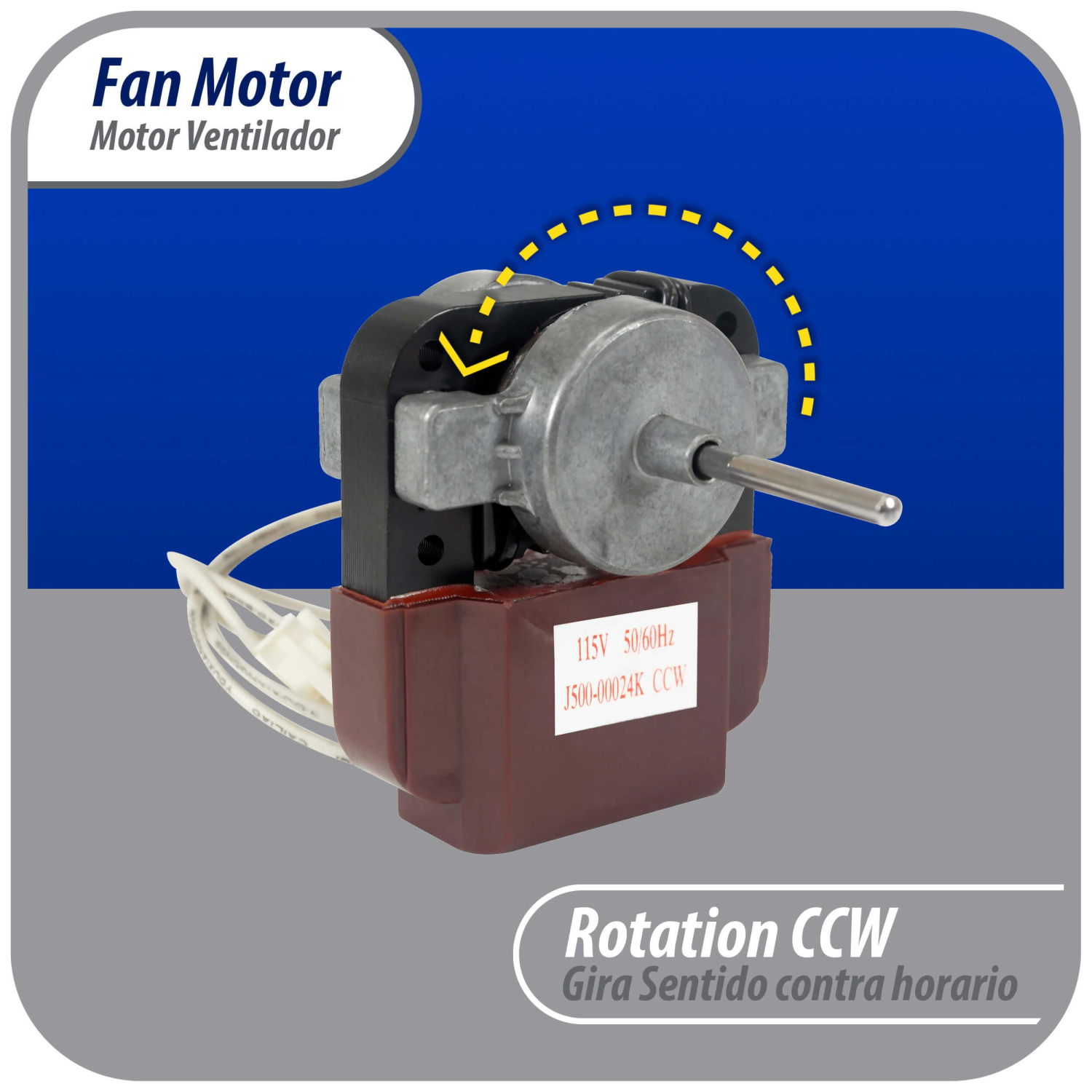

Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft

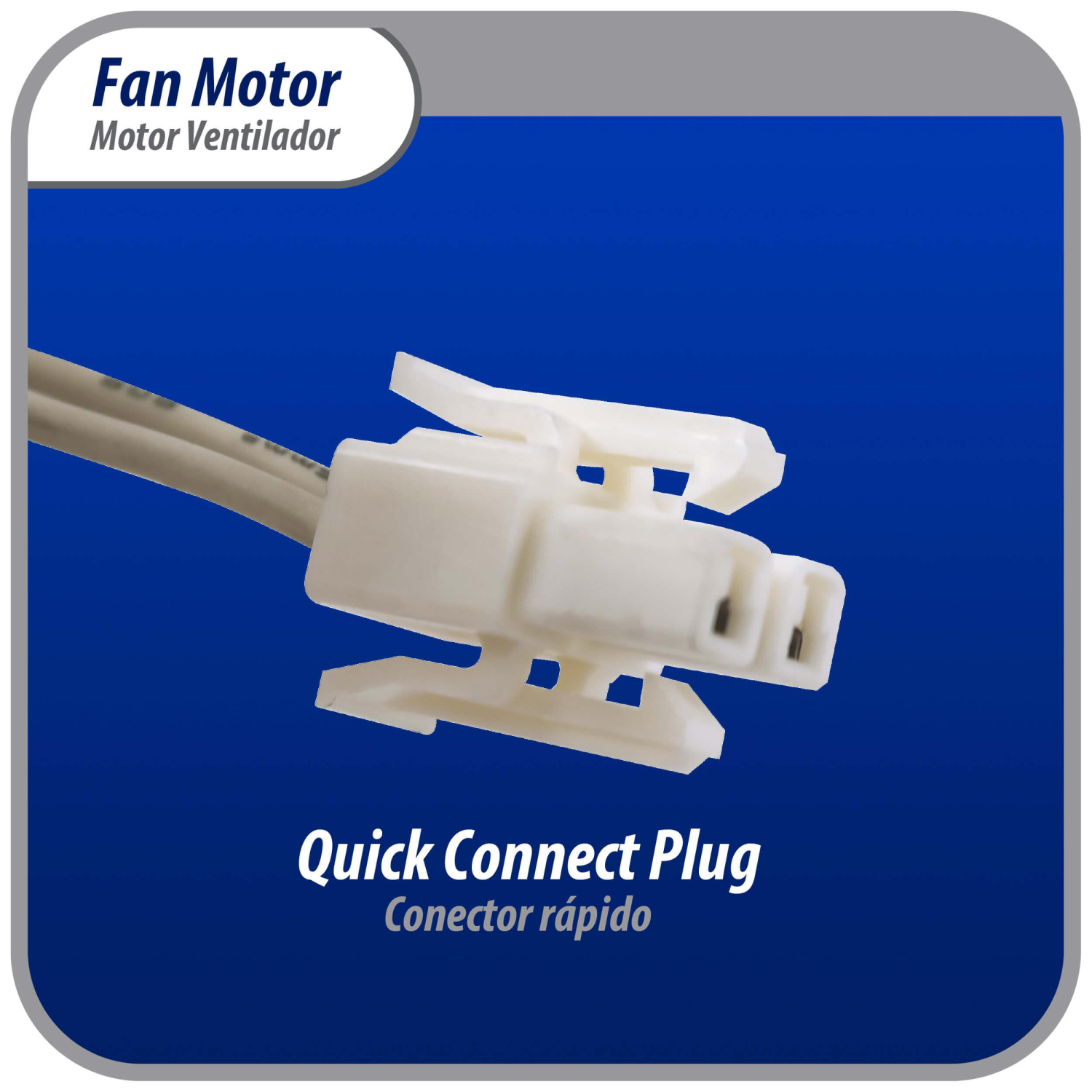

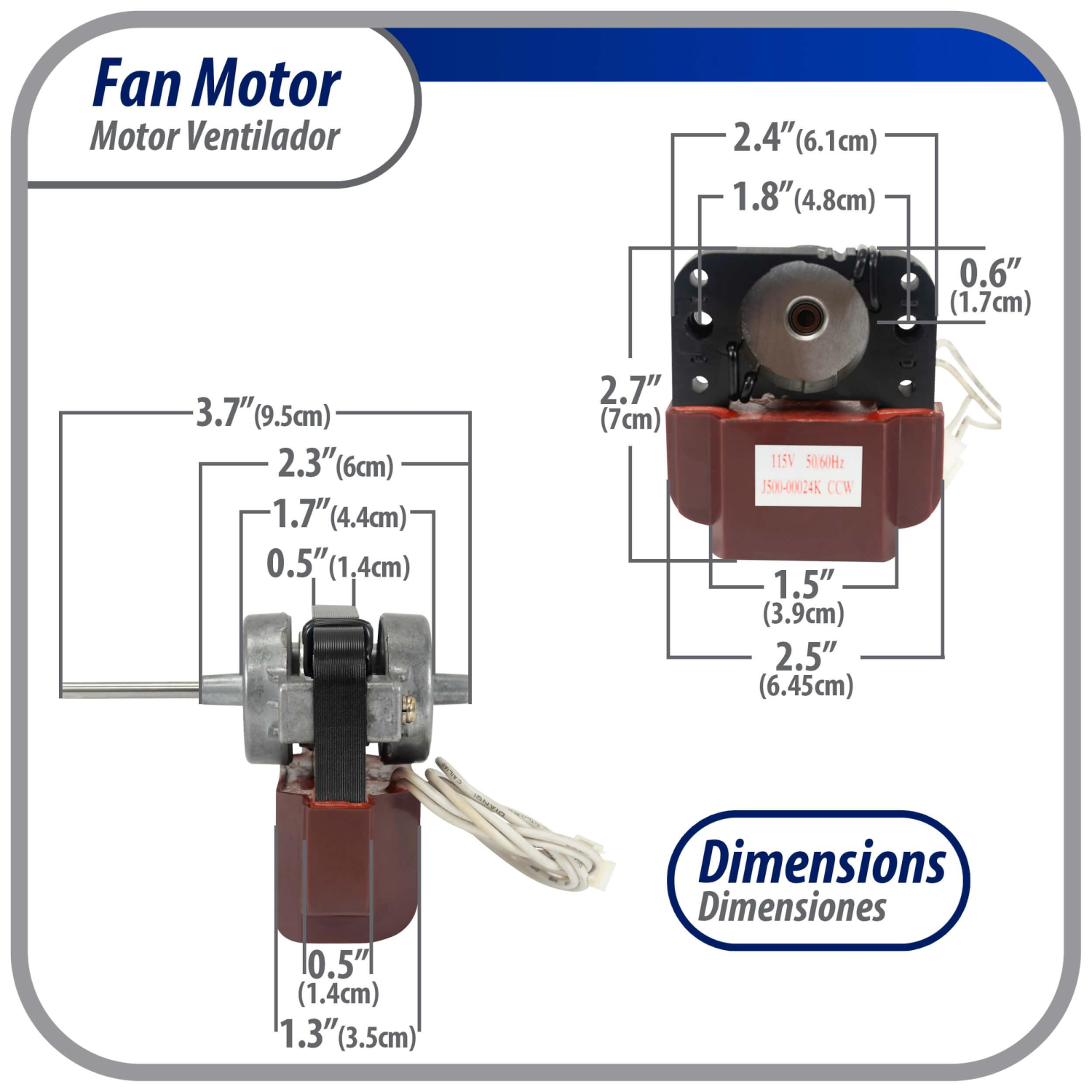

Specs: Fan motor for 110V 50-60Hz 8W 0.16A 2800rpm. Shaft is 1-1/4in Long 3/16in diam. 12in Cable with quick connect clip connection. Plastic sealed cover
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same
Weight
0.96 LBR
Volume
0.02292209 FTQ
Model
APFM-500
UPC-EAN
814245026509
