Appli Parts evaporator Fan Motor for refrigerators and freezers 110V 60Hz 0.12A 7.5W 2500rpm CCW Shaft Length 1-3/4inch replaces 200D2940P005 200D2940P011 P009 WR01F01638 APFM-1638

Appli Parts evaporator Fan Motor for refrigerators and freezers 110V 60Hz 0.12A 7.5W 2500rpm CCW Shaft Length 1-3/4inch replaces 200D2940P005 200D2940P011 P009 WR01F01638 APFM-1638

$22.85 ($1.00 EA)

Size Guide

Tags 200D2940P001C 200D2940P002 P009 WR01F02268

Appli Parts evaporator Fan Motor for refrigerators and freezers 110V 60Hz 0.12A 7.5W 2500rpm CCW Shaft Length 1-3/4inch replaces 200D2940P005 200D2940P011 P009 WR01F01638 APFM-1638
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same

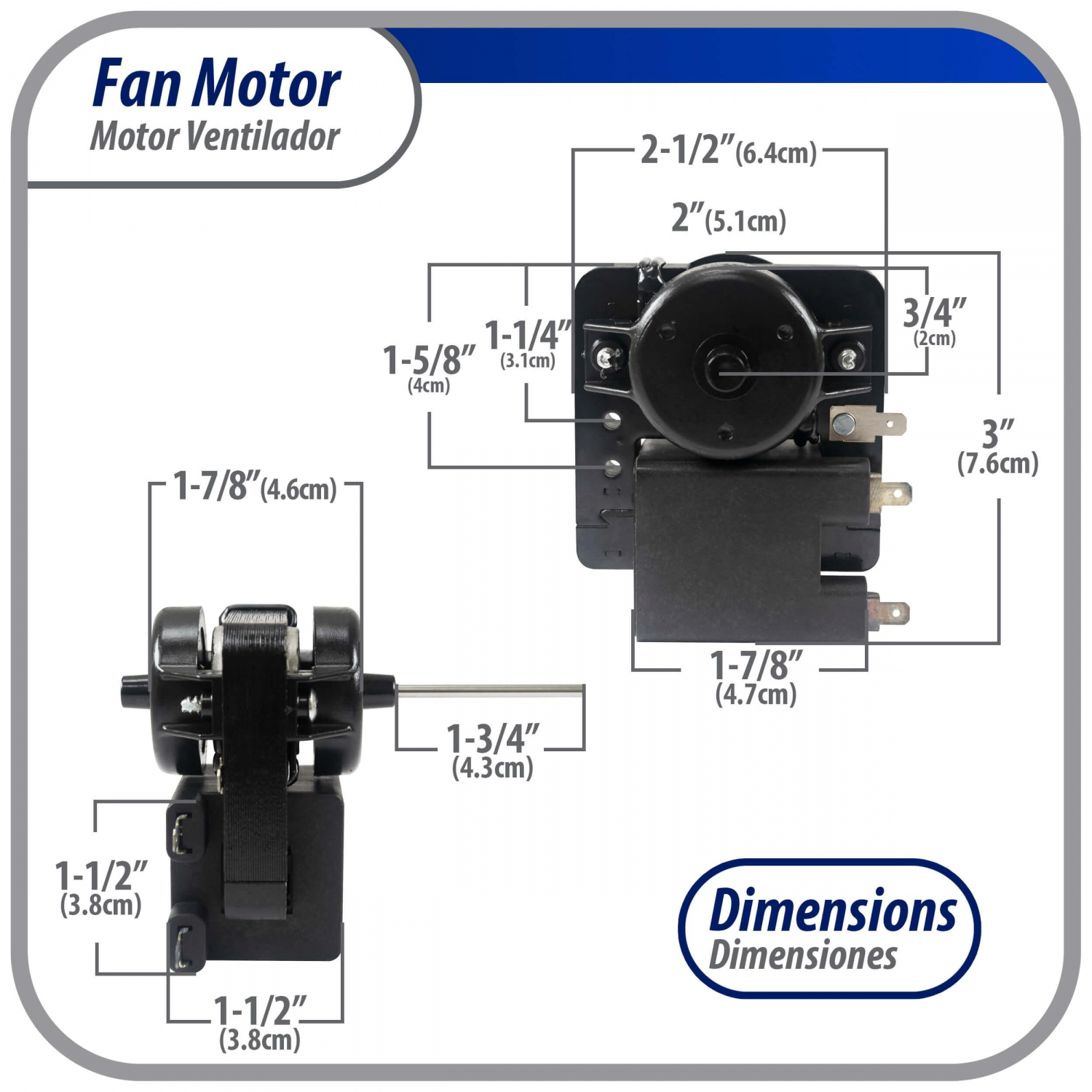

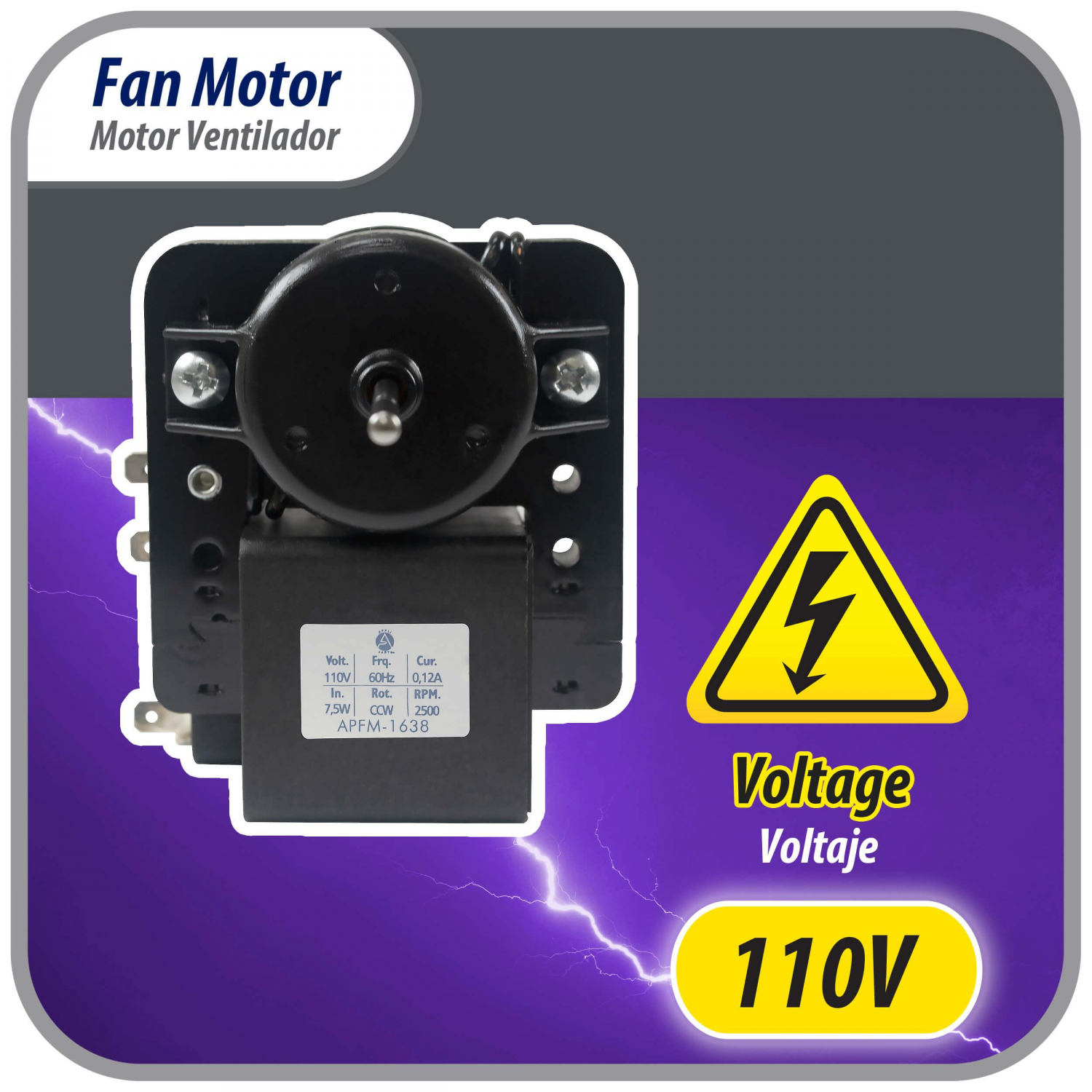

Specs: Evaportator fan motor 110 Volts 60 Hertz 0.12 Amps 7.5 Watts 2,500 Rpm Counterclockwise rotation Shaft 1-3/4 inches long 1/8 inch diameter. Plastic housing protection
Replaces: Will replace multiple brands and models specially MABE LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs

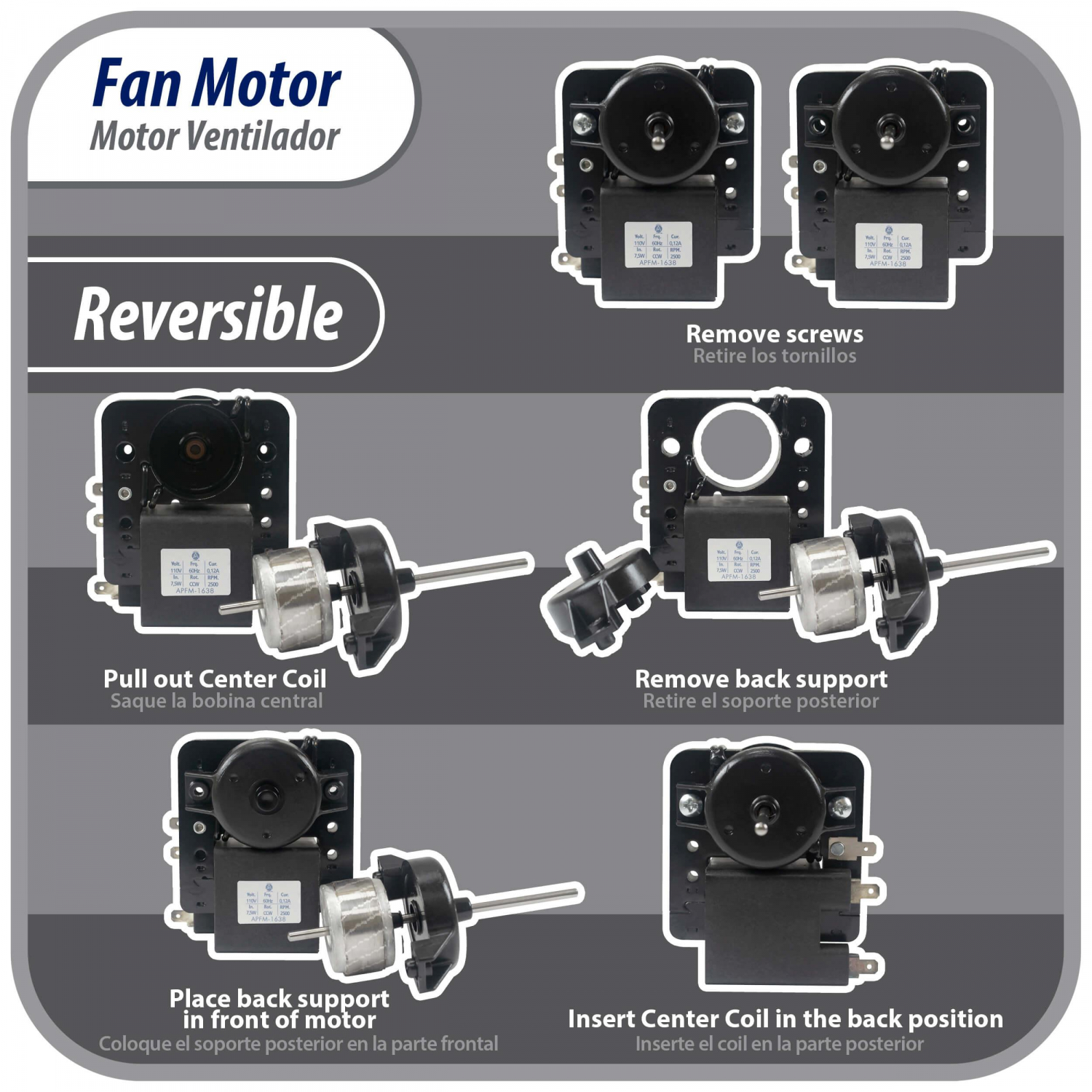

Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft
Quality: Our products are manufactured following Original Equipment Manufacturers high quality standards for universal replacement parts to perform according to specs

Weight : 0.96 LBR
Volume : 0.02292209 FTQ
Model : APFM-1638
UPC-EAN : 814245029449

Appli Parts Fan Motor APFM-1638

This item will replace various brands and models including but not limited to:

Replaces: 162D1372P007, 162D1372P010, 200D2940P001, 200D2940P011, 200D2940P016, 355B2017G001, E172722, IS-3210MBI-1, WR01F01638

Reference G0229405AP

In stock 434 Items

Condition New

Data sheet

Product Feature: Quality: Our products are manufactured following Original Equipment Manufacturers high quality standards for universal replacement parts to perform according to specs
Replaces: Will replace multiple brands and models specially MABE LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs
Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft
Specs: Evaportator fan motor 110 Volts 60 Hertz 0.12 Amps 7.5 Watts 2,500 Rpm Counterclockwise rotation Shaft 1-3/4 inches long 1/8 inch diameter. Plastic housing protection
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same
Weight: 0.96 LBR
Volume: 0.02292209 FTQ
Model: APFM-1638
UPC-EAN: 814245029449
