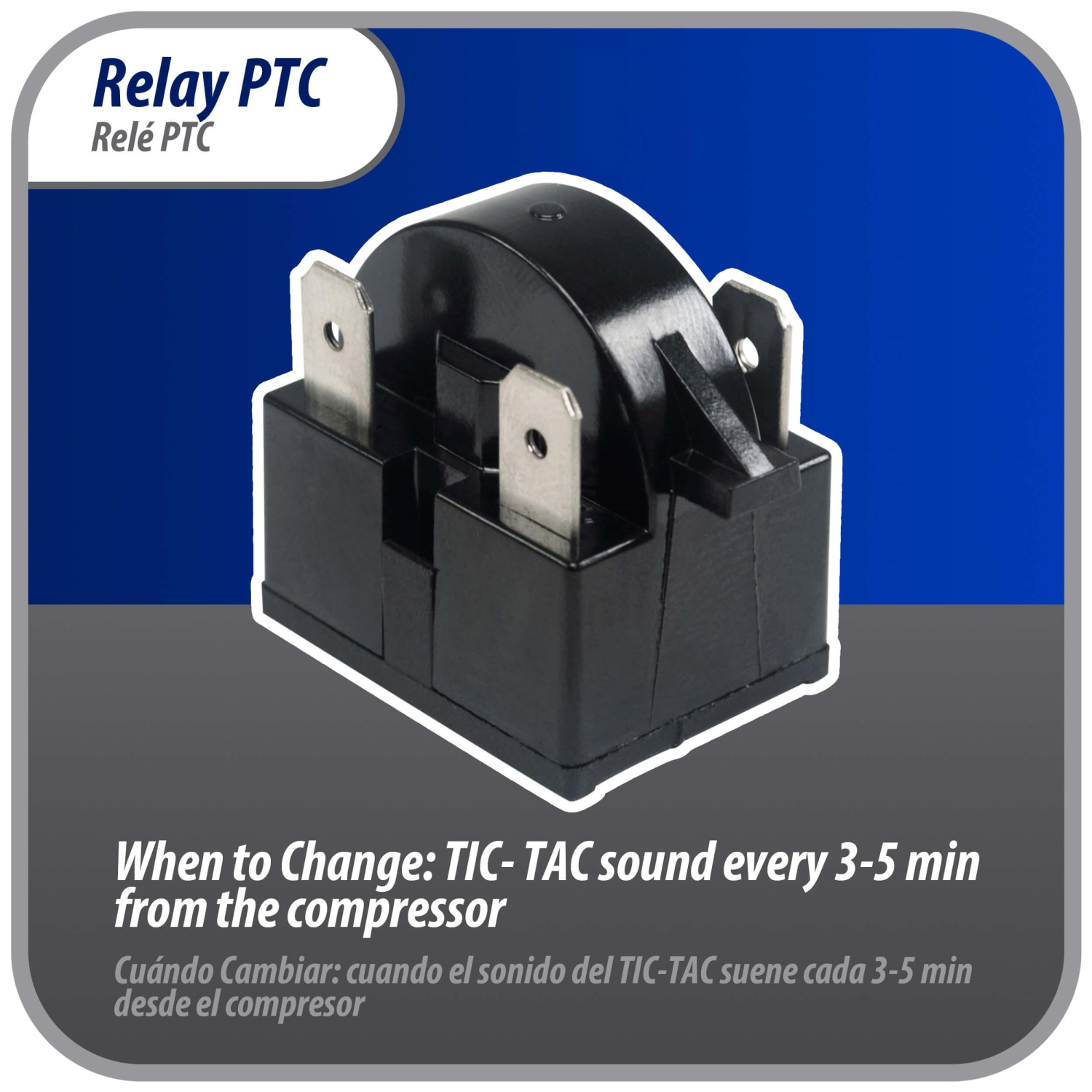

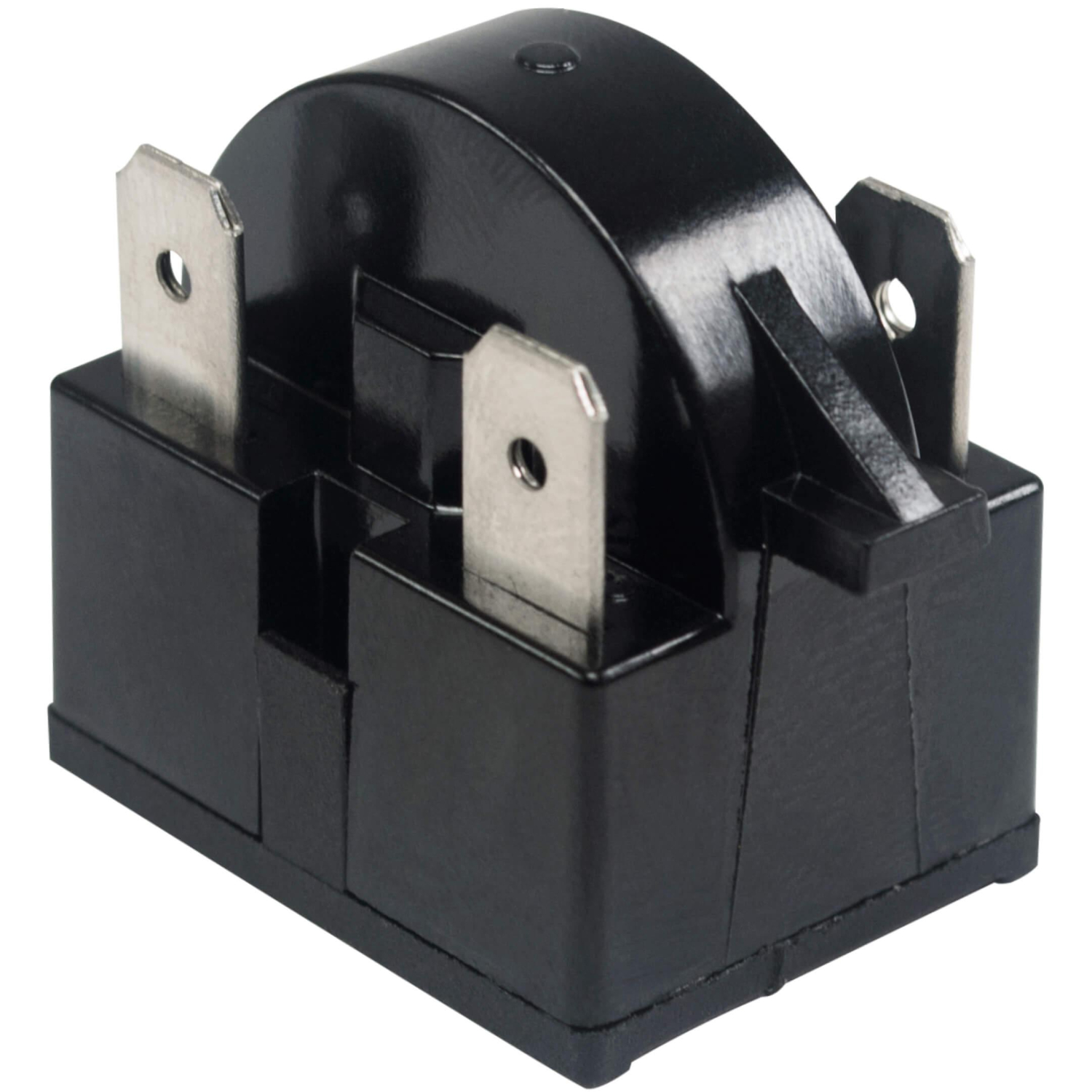

Appli Parts mini fridge relay switch 3 pin 4.7 Ohm 110V Universal PTC Start relay replacement part for multiple brands of refrigerators wine cooler APSR-4002P
$8.42($1.00 EA)
Appli Parts mini fridge relay switch 3 pin 4.7 Ohm 110V Universal PTC Start relay replacement part for multiple brands of refrigerators wine cooler APSR-4002P
Appli Parts mini fridge relay switch 3 pin 4.7 Ohm 110V Universal PTC Start relay replacement part for multiple brands of refrigerators wine cooler APSR-4002P
Use: refrigerator start relay are used during the starting of the compressor to remove the start winding or capacitor from the circuit once a certain temperature is reached Specs: Compressor PTC Start relay. 3 x 1/4in straight Pins (1,2,3) for 110V application 60Hz. Ohms of resistance equal to 4.7. 1-1/8in long 13/16in wide 1-1/8in High Universal: This 3 pin PTC can be used as a replacement for most brands of refrigerators, coolers, wine fridge, chest freezer and other applications with small refrigeration compressors Replaces: QP2-4R7-EP13A, QP2-4R7-EP12J, QP2-4R7-1T, qp2-4r7, QP2-4R7, qp2-4.7g12, QP2-4.7G QP2-4.7, MCBR170TC, HMBR440, 61005504, 61001800, 61001626, 8170527, 2262185, 2262182 2213767, 2213766, 2183454, 2154804, 1515076,WP2262185, W10919578,2176806 Quality: Our products are manufactured following OEM high quality standards offering products that replace original parts with the same or above performance
Quality: Our products are manufactured following OEM high quality standards offering products that replace original parts with the same or above performance

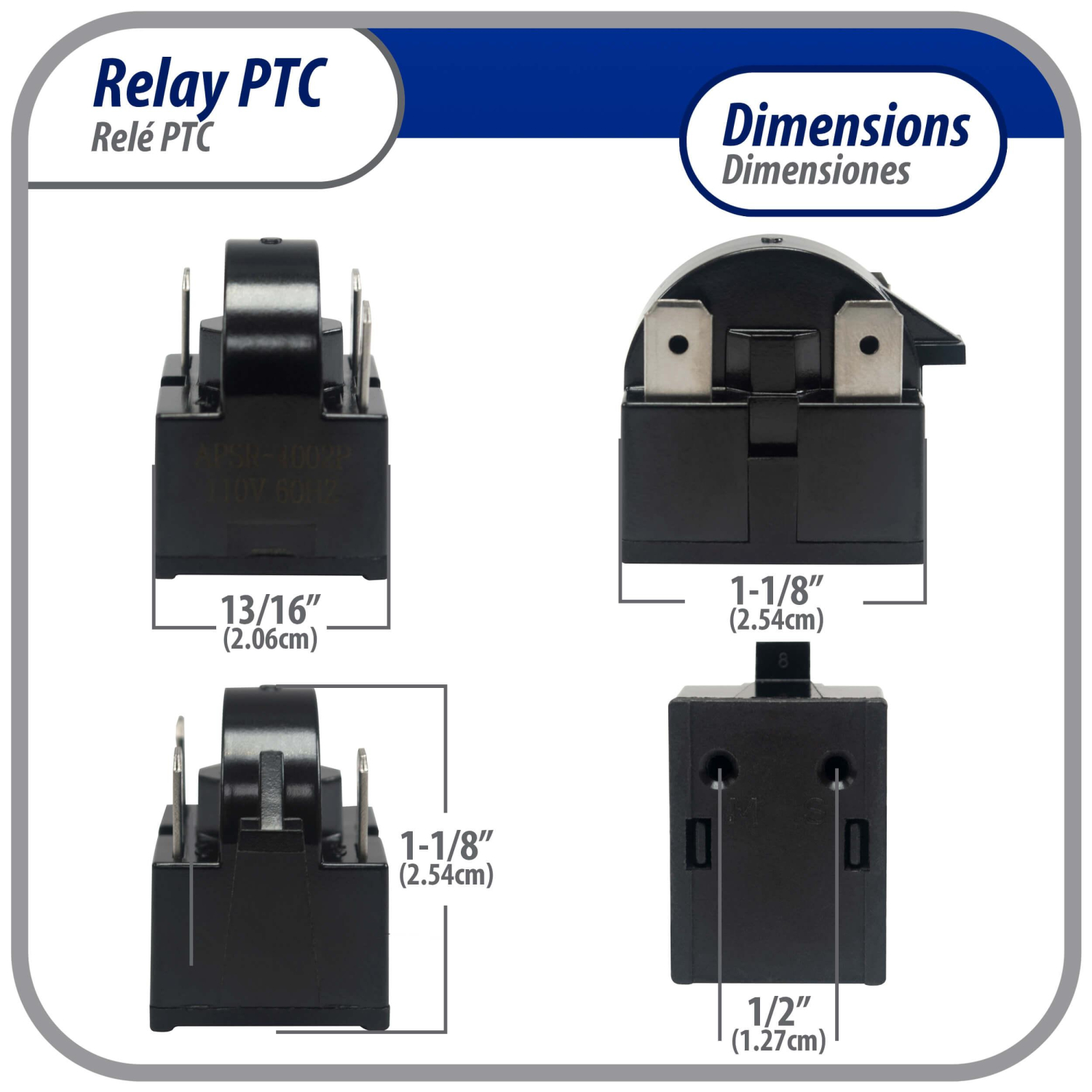

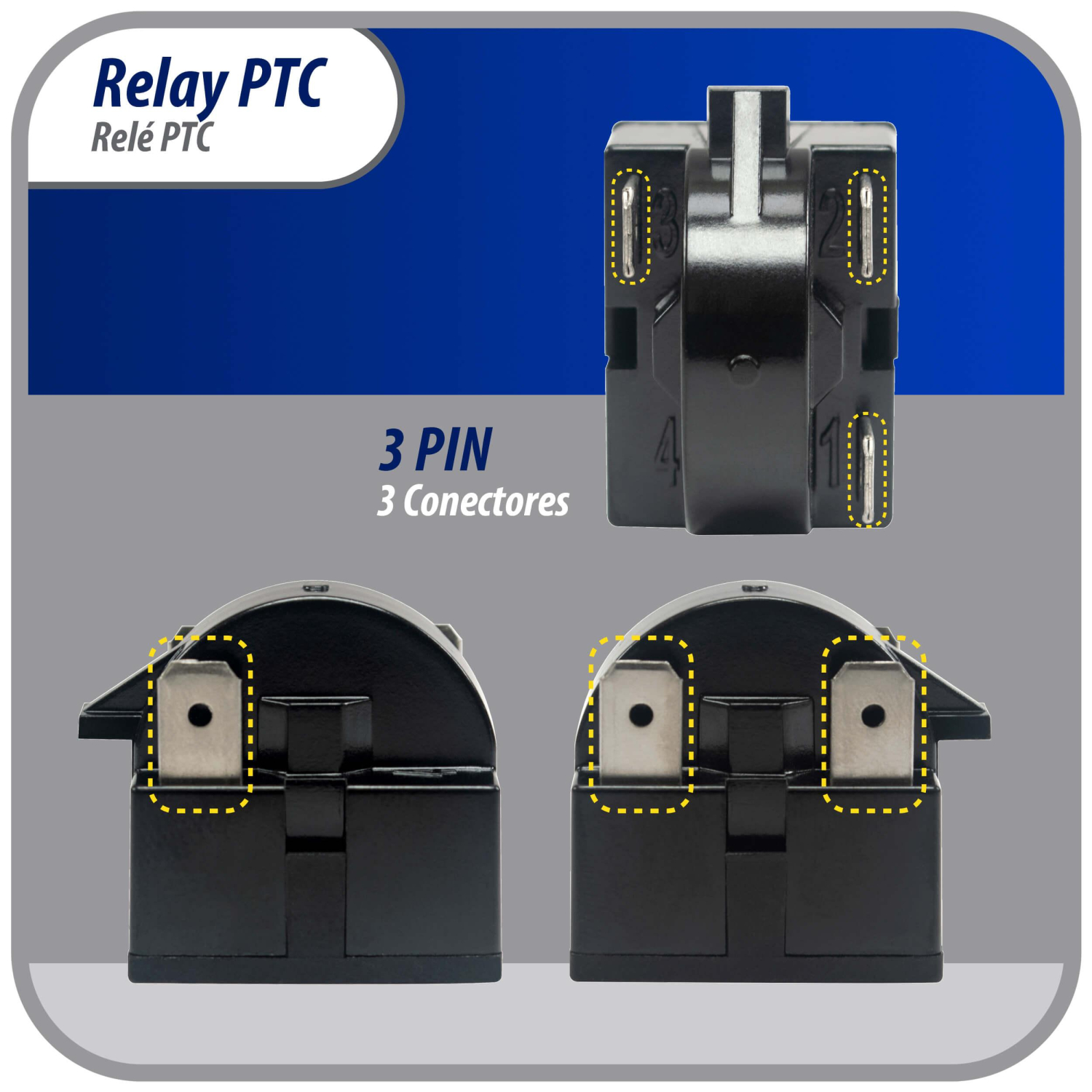

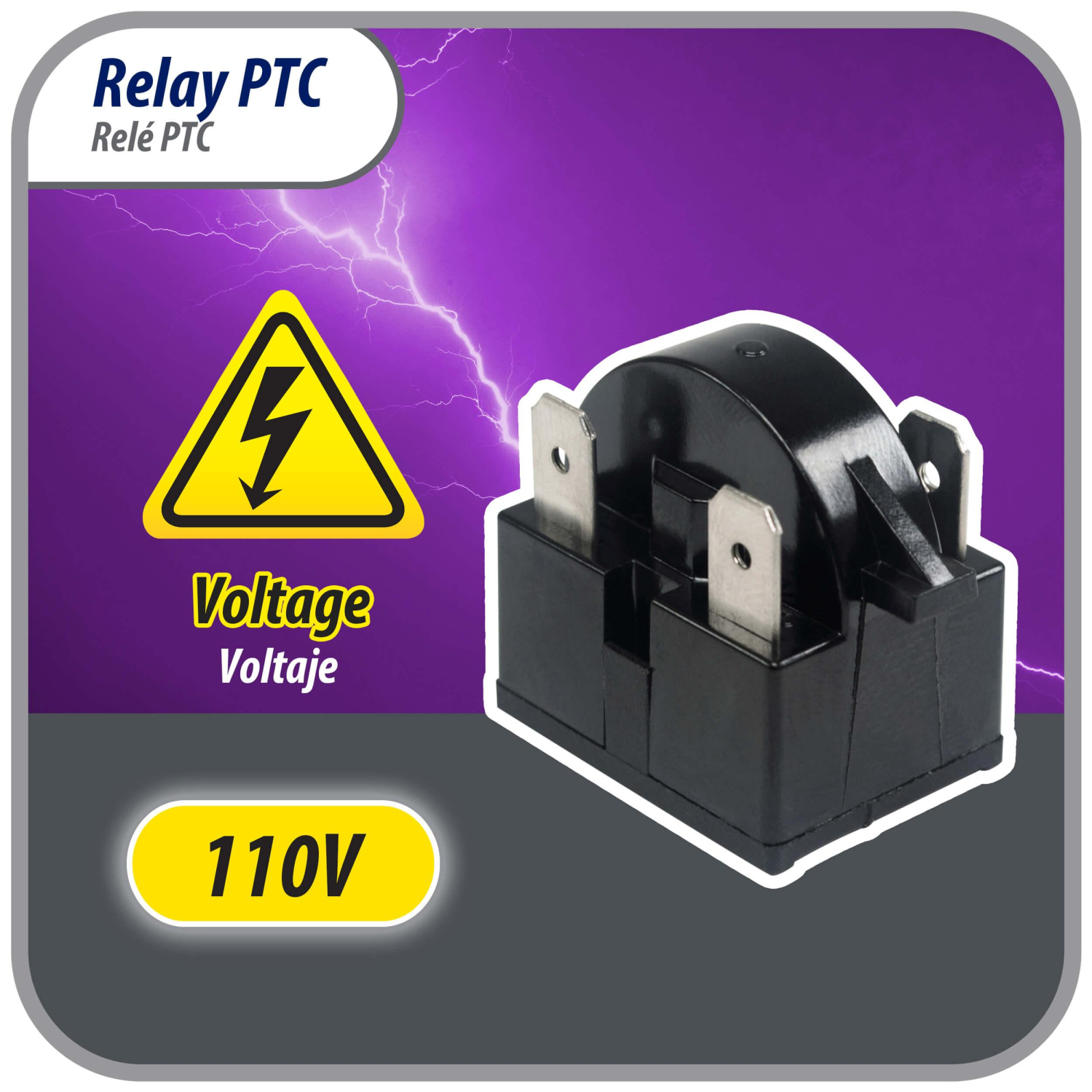

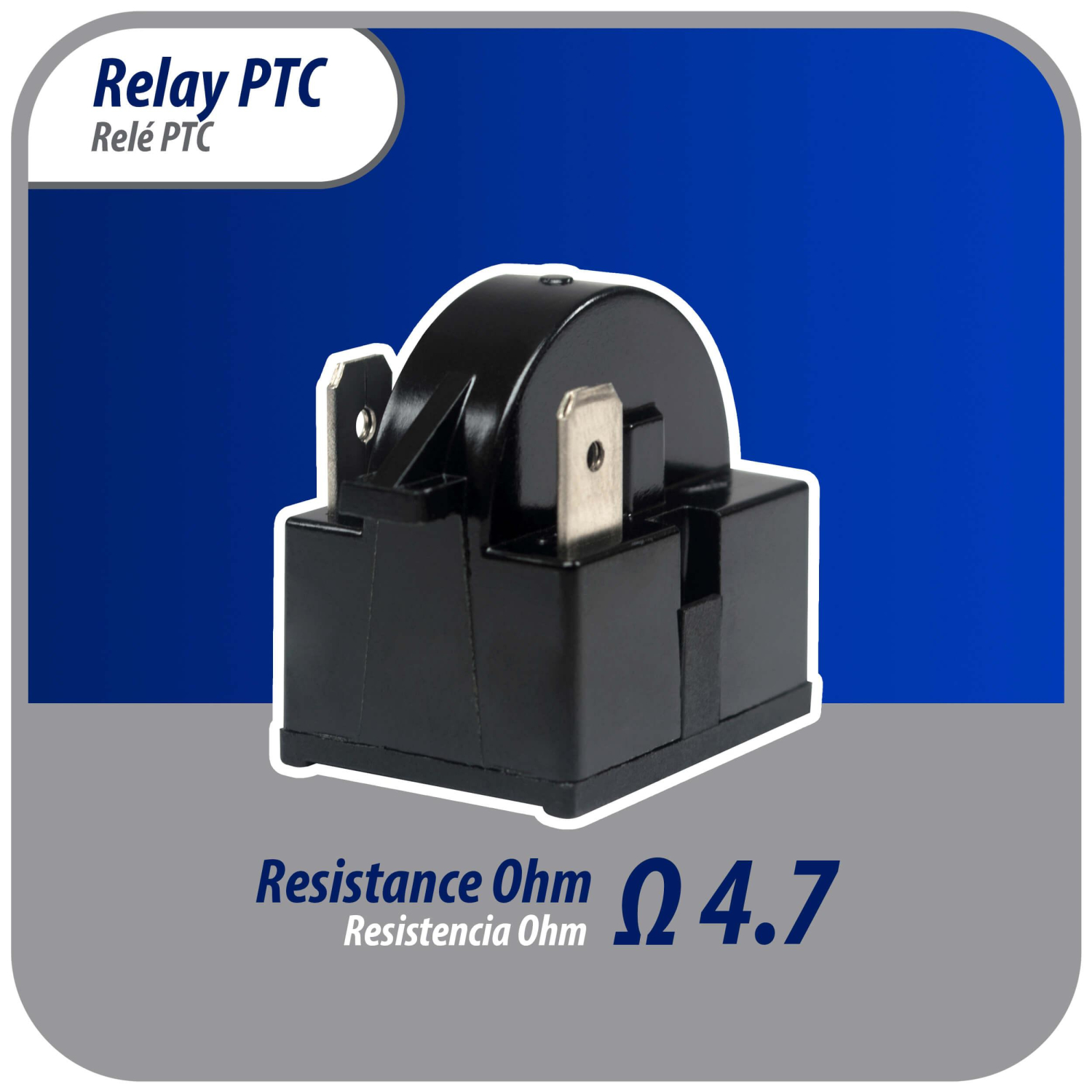

Specs: Compressor PTC Start relay. 3 x 1/4in straight Pins (1,2,3) for 110V application 60Hz. Ohms of resistance equal to 4.7. 1-1/8in long 13/16in wide 1-1/8in High
Universal: This 3 pin PTC can be used as a replacement for most brands of refrigerators, coolers, wine fridge, chest freezer and other applications with small refrigeration compressors
Use: refrigerator start relay are used during the starting of the compressor to remove the start winding or capacitor from the circuit once a certain temperature is reached
Weight
0.04 LBR
Volume
0.016315376 FTQ
Model
APSR-4002P
UPC-EAN
850022065804
