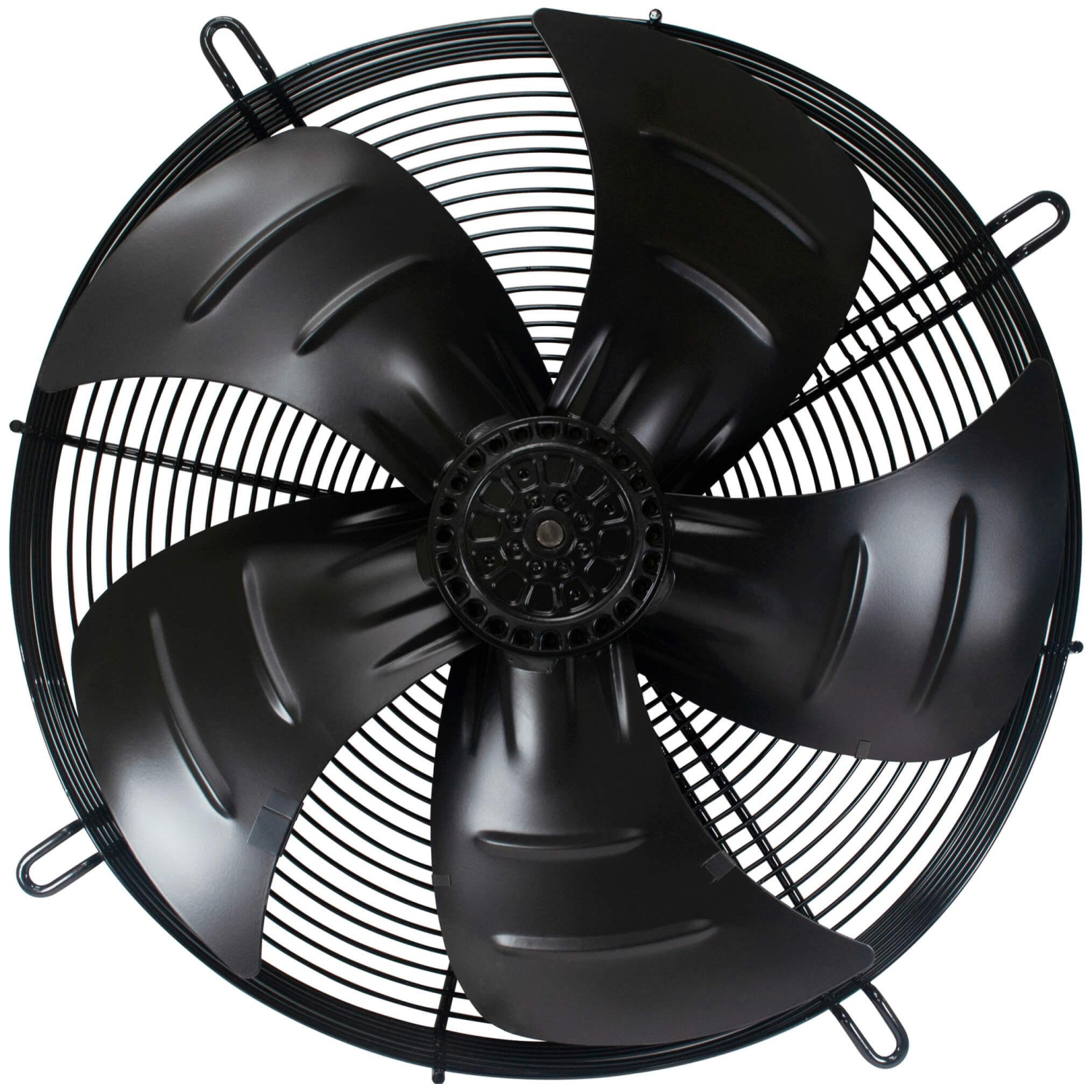

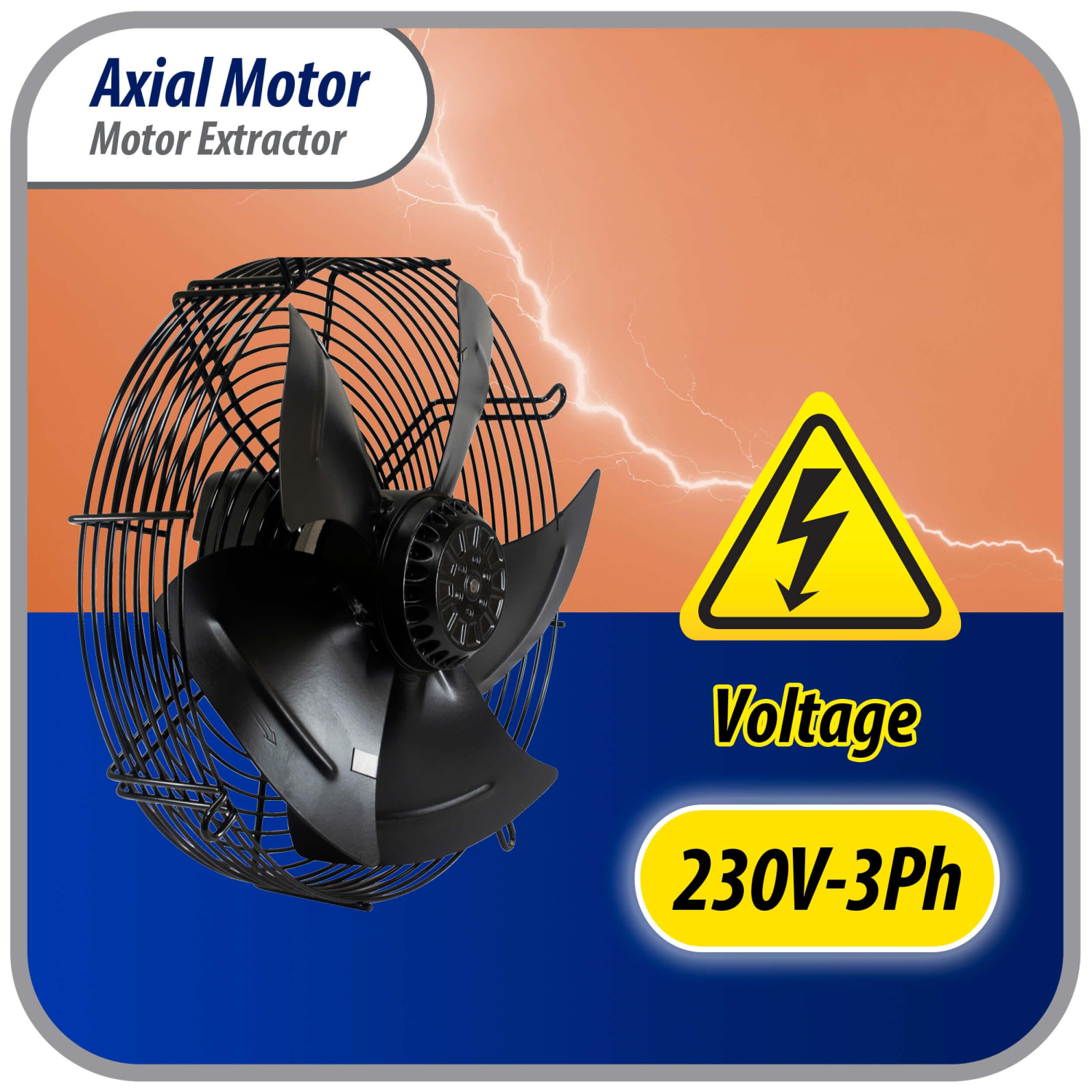

Appli Parts Axial Fan Motor Guard Mounted 19-3/4in (500mm) Fan Blade 220V/3Ph/50-60Hz 500W 1450rpm Universal replacement for Cold Room Evaporators and Condensing Units Work Temp -22F To 140F AXF-500-3
$301.74($1.00 EA)
Appli Parts Axial Fan Motor Guard Mounted 19-3/4in (500mm) Fan Blade 220V/3Ph/50-60Hz 500W 1450rpm Universal replacement for Cold Room Evaporators and Condensing Units Work Temp -22F To 140F AXF-500-3
Appli Parts Axial Fan Motor Guard Mounted 19-3/4in (500mm) Fan Blade 220V/3Ph/50-60Hz 500W 1450rpm Universal replacement for Cold Room Evaporators and Condensing Units Work Temp -22F To 140F AXF-500-3
Use: High Throw air Volume Exhaust Fan kit for air Circulation Where Used: Intended for Refrigeration applications such as Evaporators for Cold Room Freeze Storage, Air Circulation Extraction, Condensing Units Work Temp: Suitable for Freezing Temperatures From -22F (-30C) to 140F (60C) Specs: 19.69 in (500mm) Metal Fan Blade 220V 1Ph 50/60Hz 500W 1450rpm. Includes: Motor, Fan Blade and Guard Base Quality: All our products are designed and manufactured following very strict procedures and high quality standards during their manufacture. An optimal selection of materials is made, combined with research and development procedures, which guarantee the durability and performance of each manufactured product, offering our customers the same efficiency expected from an original part

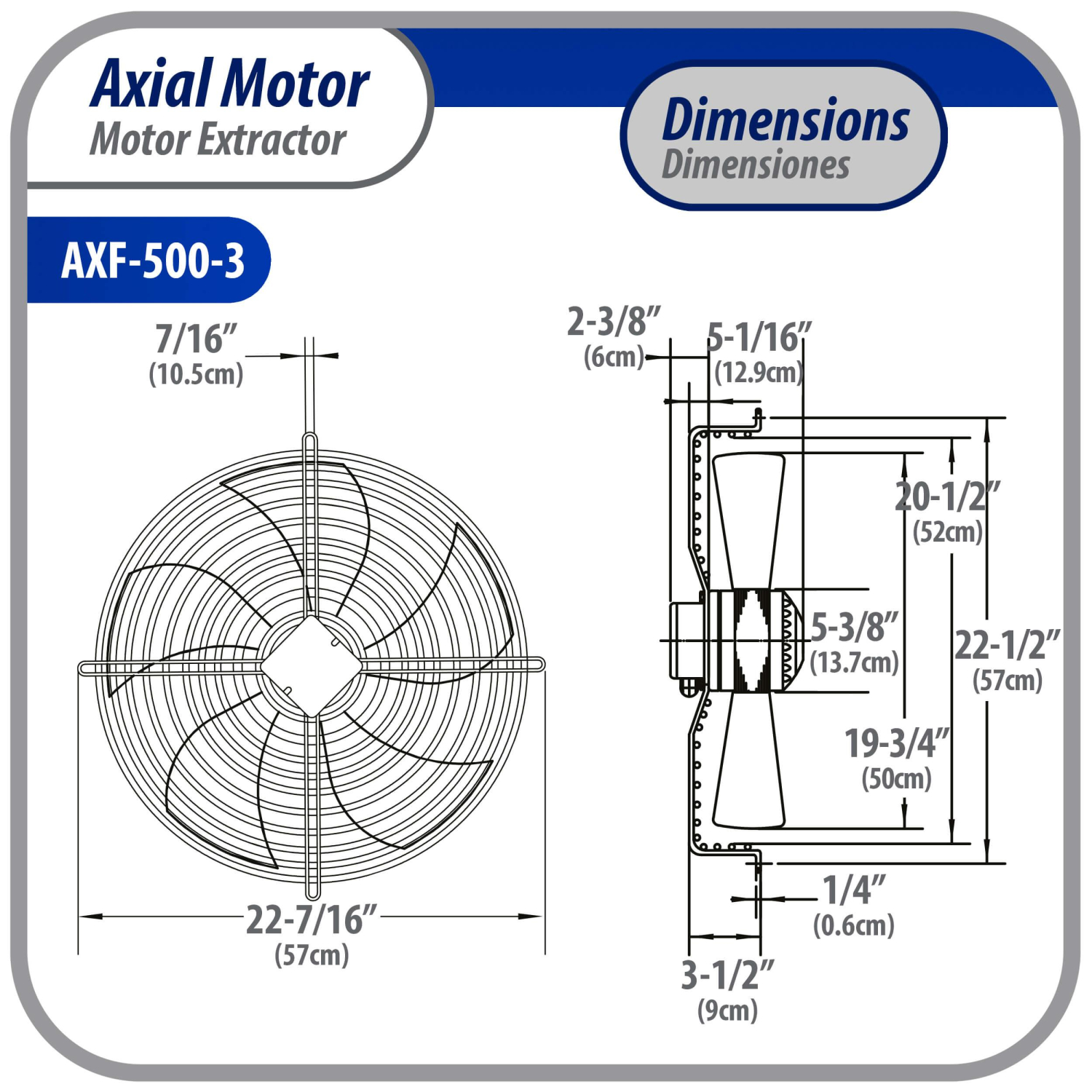

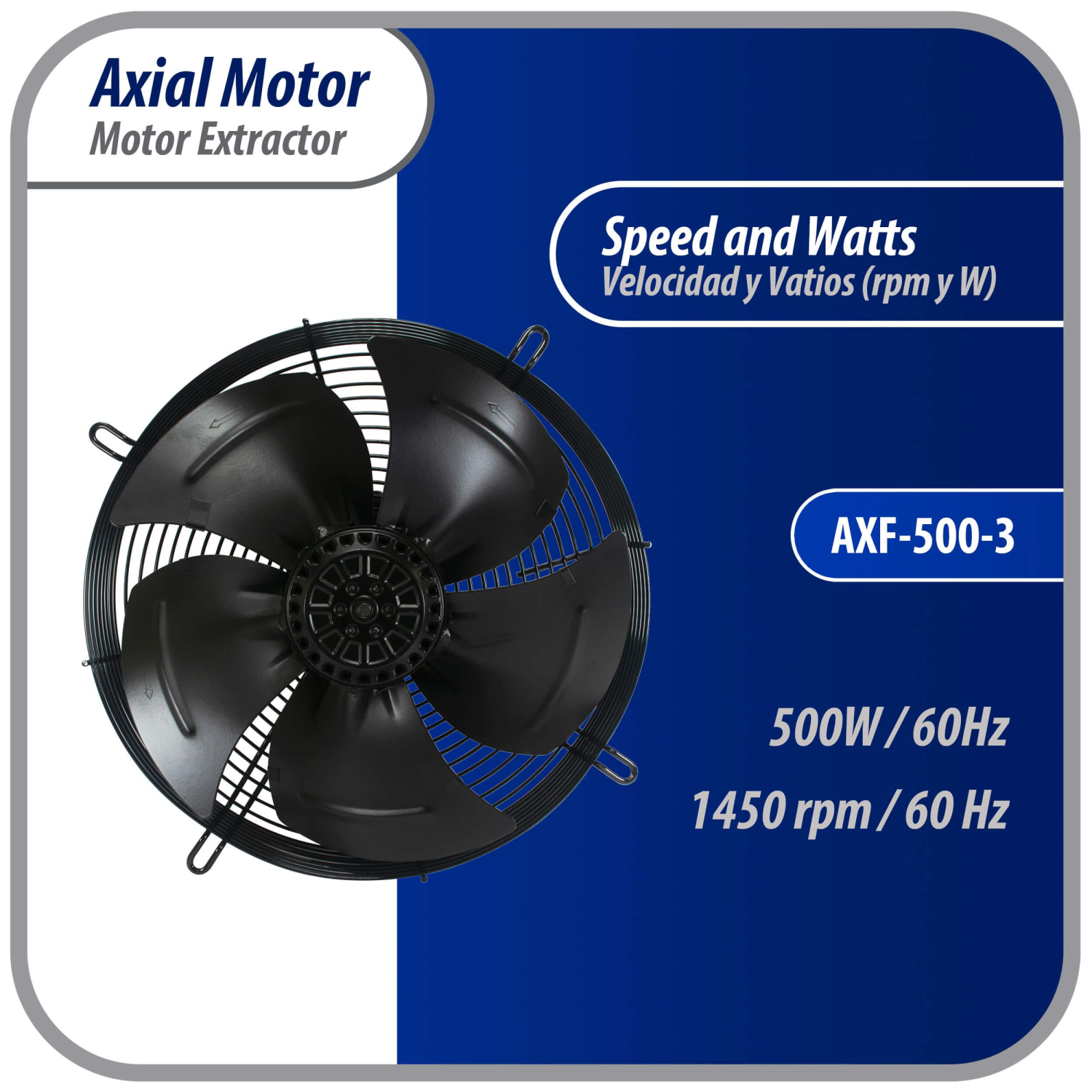

Specs: 19.69 in (500mm) Metal Fan Blade 220V 1Ph 50/60Hz 500W 1450rpm. Includes: Motor, Fan Blade and Guard Base

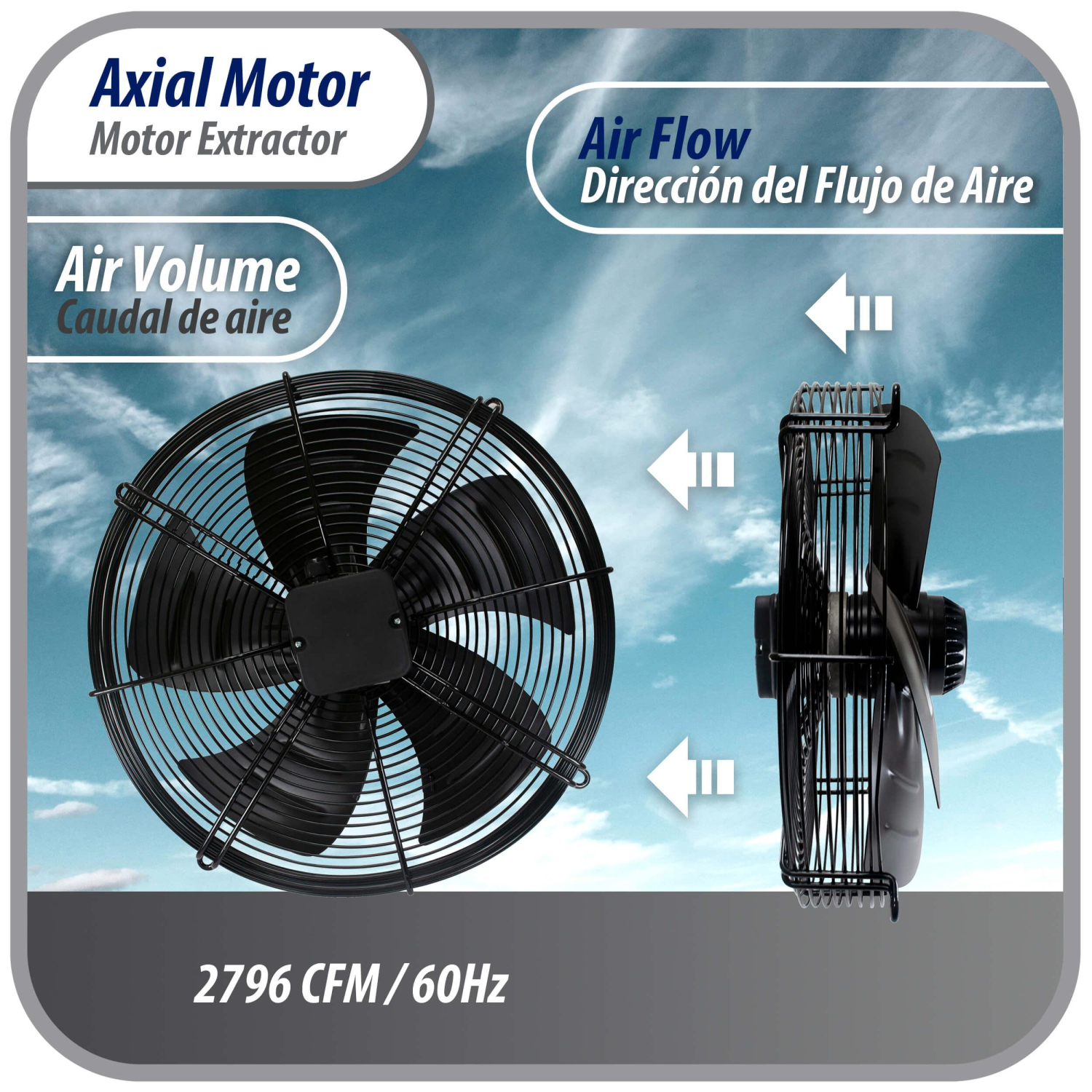

Use: High Throw air Volume Exhaust Fan kit for air Circulation

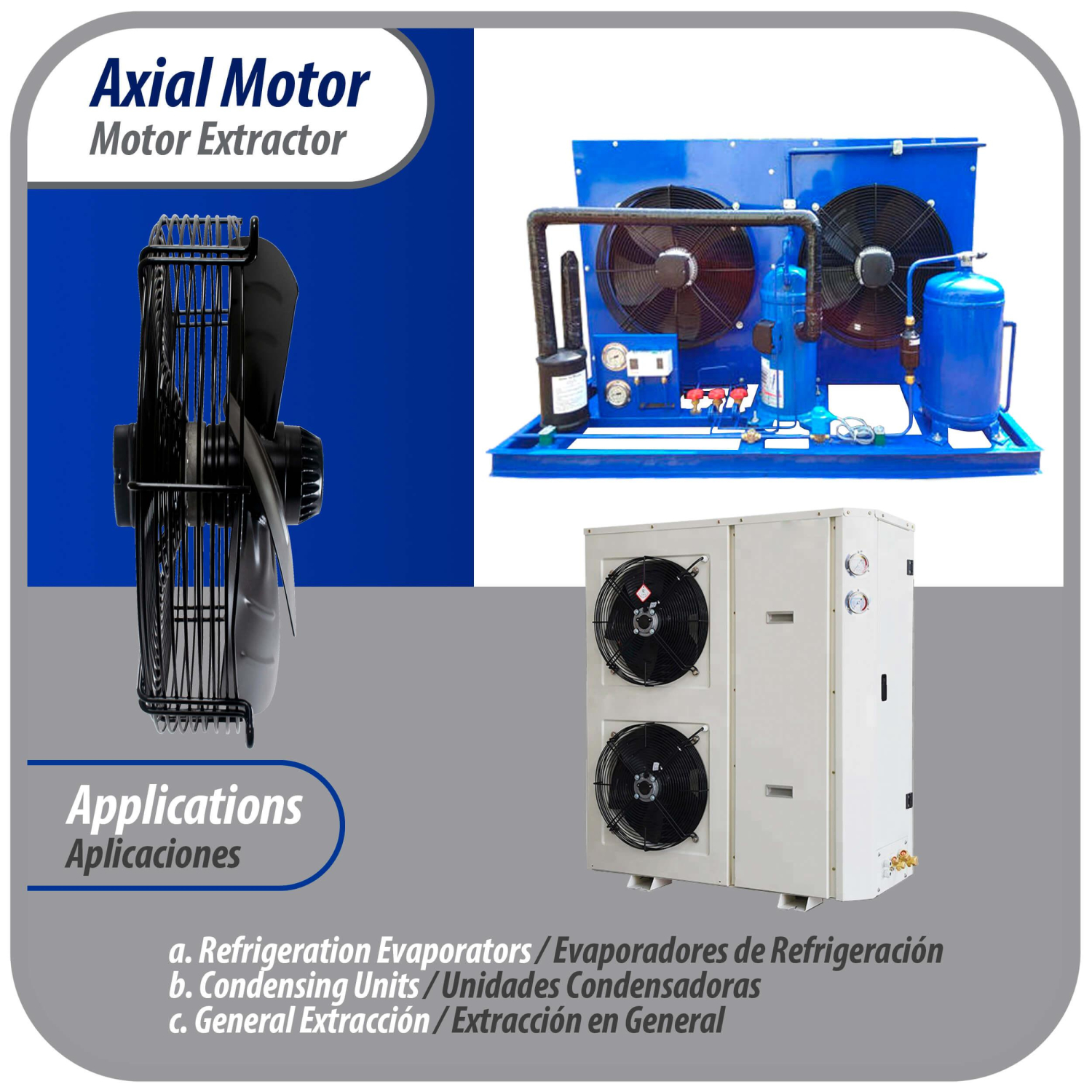

Where Used: Intended for Refrigeration applications such as Evaporators for Cold Room Freeze Storage, Air Circulation Extraction, Condensing Units

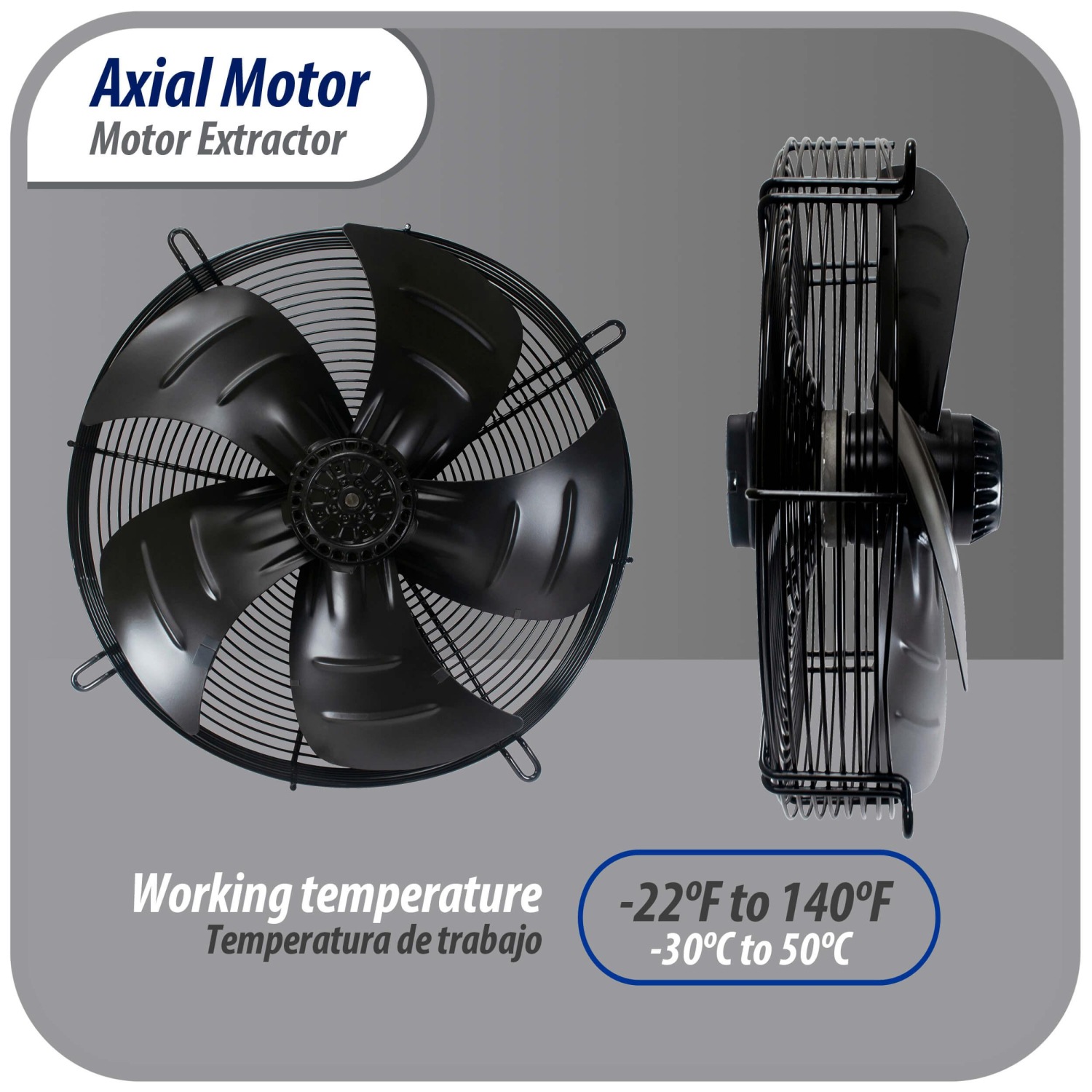

Work Temp: Suitable for Freezing Temperatures From -22F (-30C) to 140F (60C)
Weight
23.46 LBR
Volume
2.6609 FTQ
Model
AXF-500-3
UPC-EAN
853577008388
